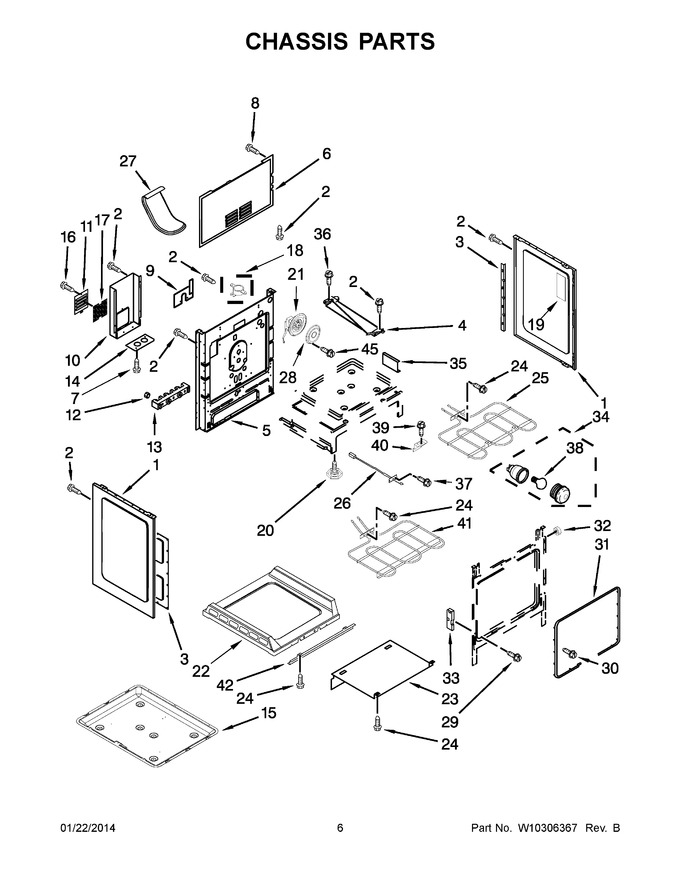

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F172-58		Panel, Side (white)				$ 47.61
1	2618F172-69		Panel, Side (black)				$ 81.90
2	W11169708		Screw   (Replaces: 3196560)				$ 13.36
3	3601F380-51		Retainer, Insulation				$ 25.83
4	W10792991		Latch, Door Lock   (Replaces: W10275451)				$ 339.59
5	W10205618		Back, Main				$ 78.53
6	W10243046		Cover, Wire		Appelez-nous	-
7	WP4159193		Screw   (Replaces: 7101P336-60)				$ 5.07
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
9	7003P145-60		Insulation, Power Cord		Appelez-nous	-
10	W10243045		Cover, Terminal Block		Appelez-nous	-
11	4005P704-51		Cover, Access Plate				$ 7.07
12	WP488130		Nut, Lock   (Replaces: 7103P082-60)				$ 7.32
13	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)			Immediately	$ 35.17
14	3605P146-51		Plate, Conduit		Appelez-nous	-
15	3401F084-45		Pan, Bake Burner				$ 56.18
16	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
17	W10260573		Screen, Access		Appelez-nous	-
18	74008715		Switch, Limiter   (Replaces: 7403P857-60)				$ 213.97
19	3804F300-51		Retainer, Insulation				$ 69.39
20	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 29.52
21	7427P099-60		Fan, Assembly		Appelez-nous	-
22	WPW10211368		Bottom, Oven   (Replaces: W10211367)			Immediately	$ 337.76
23	3604F371-51		Shield, Heat				$ 13.98
24	W11244557		Screw   (Replaces: 3196173)				$ 14.29
25	WP7406P493-60		Element, Broil   (Replaces: 7406P493-60)			Immediately	$ 208.82
26	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 106.83
27	8026P081-60		Vent, Oven		Appelez-nous	-
28	3605F305-19		Cover, Fan		Appelez-nous	-
29	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
30	7101P618-60		Screw		Appelez-nous	-
31	W11562931		Gasket, Door   (Replaces: W10162385)			Immediately	$ 87.76
32	74008690		Spacer, Side Panel   (Replaces: 8010P148-60)				$ 22.74
33	WP74010551		Hinge, Receiver   (Replaces: 7106P125-60)			Immediately	$ 14.70
34	W11594027		Socket, Light   (Replaces: 3196701)			Immediately	$ 87.01
35	3801P798-51		Bracket, Oven Support		Appelez-nous	-
36	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
37	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
38	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
39	7101P618-60		Screw		Appelez-nous	-
40	3801P822-45		Bracket, Oven Support				$ 5.27
41	WPW10276482		Element, Bake   (Replaces: 7406P451-60)			Immediately	$ 162.33
42	3807P680-45		Support, Oven Bottom				$ 33.39
NI	7002P362-60		Insulation, Wrap				$ 79.17
NI	W10243056		Insulation, Back				$ 57.29
NI	7002P361-60		Insulation, Bottom		Appelez-nous	-
NI	W10182346		Insulation, Side Panel				$ 77.83
NI	3804F316-51		Retainer, Insulation		Appelez-nous	-
NI	4820F014-59		Strap, Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
