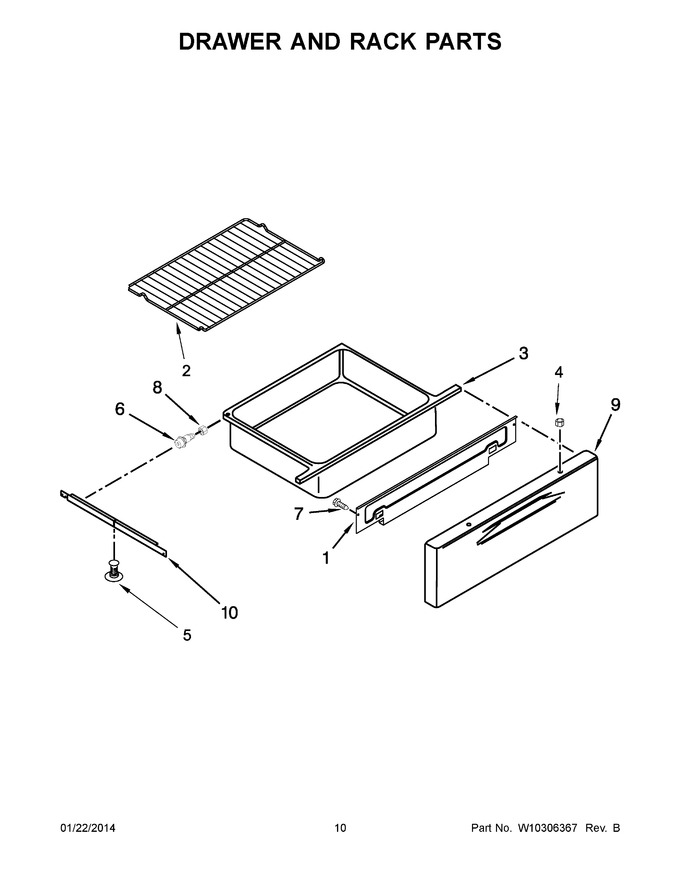

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3605P337-51 | Plate, Drawer Panel Mounting |
|
$ 48.45 | |||||
| 2 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 3 | WP3405F037-80 | Drawer, Storage (Replaces: 3405F037-80) |
|
$ 355.81 | |||||
| 4 | 7103P190-60 | Nut, Lock |
|
- | |||||
| 5 | 8038P037-60 | Drawer, Stop |
|
- | |||||
| 6 | 7118P032-60 | Shaft, Roller |
|
- | |||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 8 | WP488130 | Nut, Lock (Replaces: 7103P082-60) |
|
$ 7.32 | |||||
| 9 | W10181695 | Panel, Drawer (white) |
|
$ 84.48 | |||||
| 9 | W10181696 | Panel, Drawer (black) |
|
$ 88.53 | |||||
| 9 | W10181698 | Panel, Drawer (stainless) |
|
$ 97.22 | |||||
| 10 | 3406P034-51 | Rail, Drawer |
|
$ 33.42 |
