SELECT A DIAGRAM

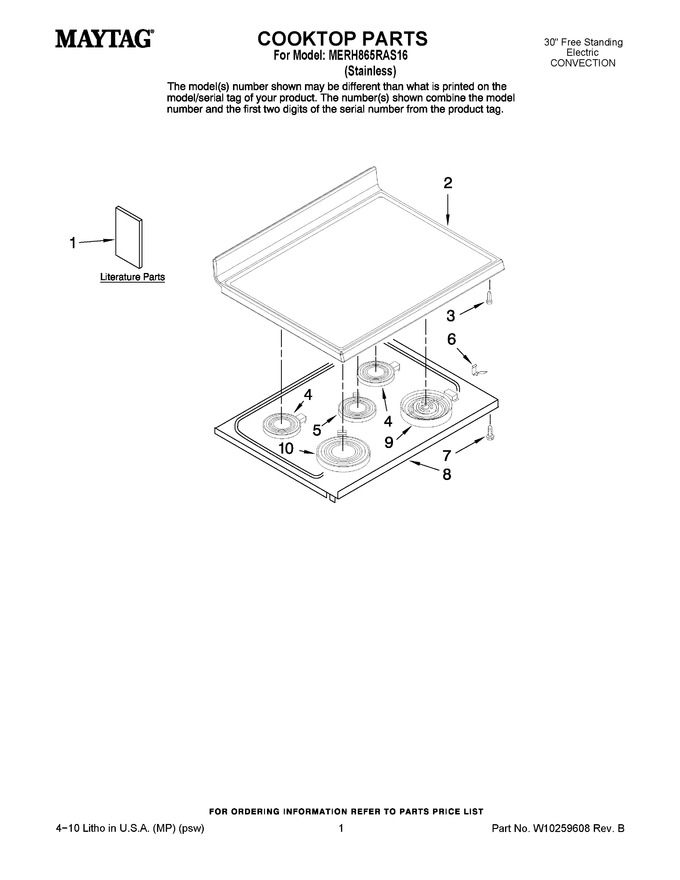

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8113P687-60		Use And Care Guide		Appelez-nous	-
1	8119P442-60		Wiring Diagram		Appelez-nous	-
1	8101P506-60		Install Instruct		Appelez-nous	-
2	W10223225		Cooktop		Appelez-nous	-
3	74008761		Spacer, Snap-in   (Replaces: 8010P149-60)				$ 8.81
4	W10823711		Element Lr/rr   (Replaces: 7406P365-60)			Immediately	$ 204.39
5	7406P457-60		Element, Warm		Appelez-nous	-
6	74007134		Spring, Element   (Replaces: 7803P087-60)				$ 12.26
7	74003975		Screw (black)   (Replaces: 7101P375-60)				$ 14.03
8	4011F497-51		Bottom, Burner Box		Appelez-nous	-
9	7406P357-60		Element 2700w (rf)		Appelez-nous	-
10	W10823696		Element 2500w (lf)   (Replaces: 7406P366-60)			Immediately	$ 214.25

    View Diagram in Separate Window       Print Part List
