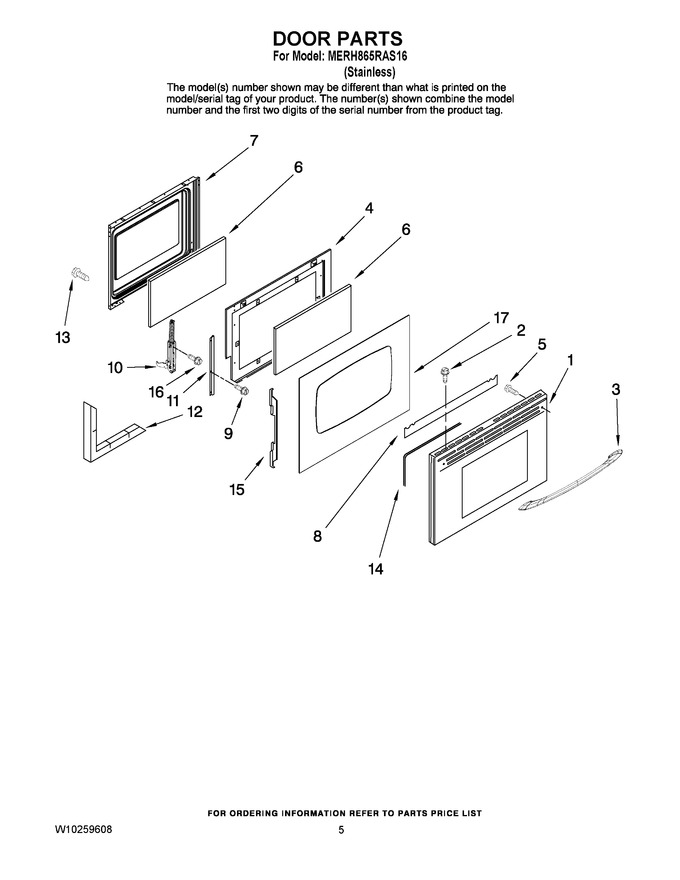

04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7760P232-60 | Panel, Door (stl) |
|
- | |||||
| 2 | WP3196175 | Screw, 8-18 X 3/8 (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 3 | 7701P526-60 | Handle, Door |
|
$ 129.23 | |||||
| 4 | 3601F380-51 | Baffle, Retainer |
|
$ 25.83 | |||||
| 5 | WP74006515 | Screw, Handle (Replaces: 7101P681-60) |
|
$ 8.84 | |||||
| 6 | 74003645 | Glass, Inner (Replaces: 7902P436-60) |
|
Immediately | $ 180.59 | ||||
| 7 | 2402W297-19 | Liner, Door |
|
$ 152.41 | |||||
| 8 | 7002P482-60 | Tape, Foil |
|
- | |||||
| 9 | W11347848 | Screw, 8ab 1/2 (Replaces: 7101P376-60) |
|
$ 14.23 | |||||
| 10 | 74010546 | Hinge, Door (Replaces: 7106P124-60) |
|
Immediately | $ 85.93 | ||||
| 11 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 12 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 13 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 14 | WP74009029 | Gasket, Door (Replaces: 7201P141-60) |
|
Immediately | $ 169.43 | ||||
| 15 | 3801P918-51 | Bracket, Glass |
|
- | |||||
| 16 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 5.07 | |||||
| 17 | 7902P803-60 | Glass, Door |
|
- |
