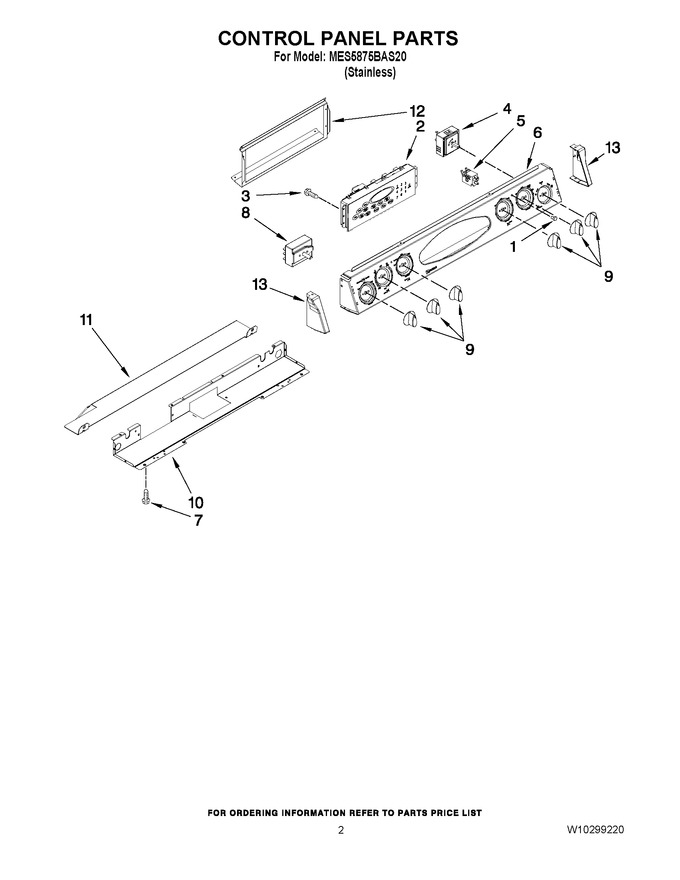

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7730P011-60 | Lens (Replaces: 7730P011-60) |
|
$ 5.73 | |||||
| 2 | WP5701M884-60 | Control W/overlay (black) (Replaces: 5701M884-60) |
|
$ 966.50 | |||||
| 3 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 7.75 | |||||
| 4 | WP74008940 | Switch, Infinte (rr) (Replaces: 7403P877-60) |
|
Immediately | $ 139.49 | ||||
| 4 | WP7403P238-60 | Switch, Infinte (lr) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 4 | WP74010824 | Switch, Infinte (lf) (Replaces: 7450P011-60) |
|
Immediately | $ 112.13 | ||||
| 4 | 74010825 | Switch, Infinte (center) (Replaces: 7450P024-60) |
|
$ 81.63 | |||||
| 4 | 7403P992-60 | Switch, Infinte (rf) |
|
- | |||||
| 5 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 6 | 2614N147-50 | Panel, Control |
|
$ 264.58 | |||||
| 7 | W10179558 | Screw |
|
- | |||||
| 8 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) |
|
$ 146.01 | |||||
| 9 | 74008948 | Knob (6) (Replaces: 7737P235-60) |
|
$ 76.53 | |||||
| 10 | 3807F729-51 | Support, Control Panel |
|
- | |||||
| 11 | 3604F421-51 | Shield, Control |
|
$ 32.71 | |||||
| 12 | 3801F895-51 | Bracket, Control |
|
- | |||||
| 13 | 7726P401-60 | Trim, End Cap (left) |
|
$ 23.44 | |||||
| 13 | 7726P400-60 | Trim, End Cap (right) |
|
$ 32.99 |
