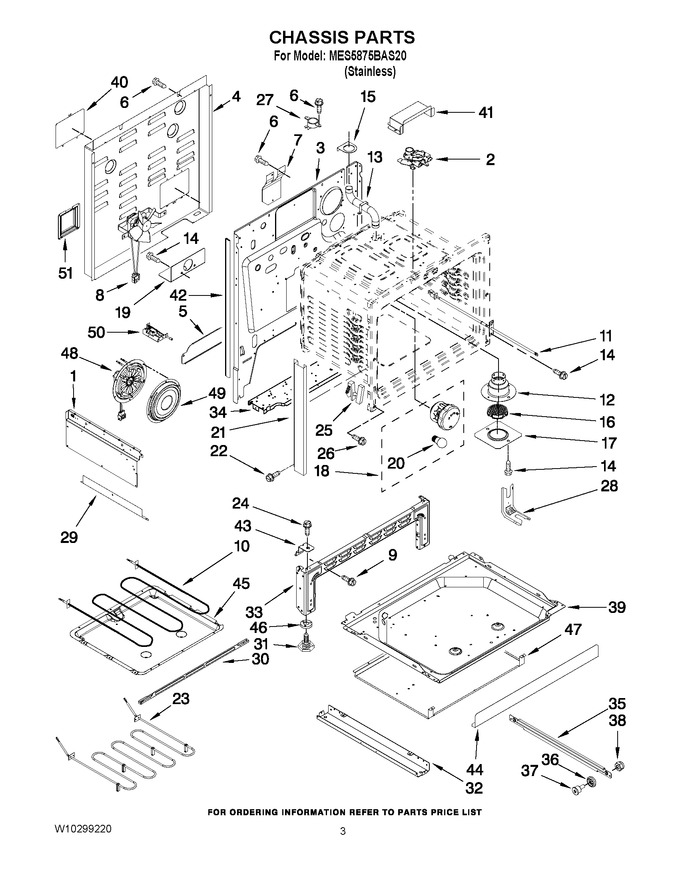

03 - Chassis Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F201-51		Panel, Shield (left)				$ 32.51
1	2618F206-51		Panel, Shield (right)				$ 135.68
2	74010819		Latch Assembly   (Replaces: 8002P089-60)				$ 360.32
3	3804F313-51		Main, Back		Appelez-nous	-
4	4005F810-51		Cover, Main Wire				$ 248.98
5	3826F066-51		Extension, Back				$ 7.82
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
7	7003P101-60		Insulator, Cord				$ 15.60
8	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 318.60
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
10	WP7406P218-60		Element, Broil   (Replaces: W10314687)			Immediately	$ 169.20
11	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 43.94
12	8026P096-60		Tube, Vent Lower		Appelez-nous	-
13	W10233479		Tube, Vent Upper				$ 74.82
14	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
15	3605F345-51		Holder, Vent Tube				$ 7.82
16	8034P008-60		Smoke Eliminator				$ 25.43
17	3605F354-45		Plate, Smoke Elm.				$ 65.19
18	WP7407P182-60		Light Assembly   (Replaces: 7407P182-60)			Immediately	$ 73.44
19	W10190166		Bracket,pwr Supply				$ 9.24
20	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 18.67
21	3608F138-70		Trim, Side				$ 66.28
22	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
23	WP7406P411-60		Element, Bake   (Replaces: W10314699)			Immediately	$ 337.68
24	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
25	74011142		Hinge (2)   (Replaces: 7106P141-60)			Immediately	$ 120.24
26	WP4159193		Screw, Hinge (4)   (Replaces: 7101P336-60)				$ 4.77
27	WP7450P034-60		Switch, Hi-limit   (Replaces: 7450P034-60)				$ 217.58
28	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
29	3826F064-51		Extention, Shield		Appelez-nous	-
30	3807F494-45		Support, Element		Appelez-nous	-
31	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.19
32	4020W035-80		Pedestal, Bottom				$ 112.82
33	W10271711		Pedestal, Front				$ 144.40
34	3807F640-51		Support				$ 31.03
35	W10182835		Runner, Drawer (2)				$ 75.89
36	W10272883		Roller, Drawer (2)				$ 7.90
37	7118P032-60		Shaft, Roller (2)		Appelez-nous	-
38	7103P190-60		Nut, Lock (2)		Appelez-nous	-
39	3804F231-51		Retainer, Bottom				$ 147.45
40	4005F612-51		Cover, Terminal				$ 46.13
41	4005F750-51		Cover, Door Latch		Appelez-nous	-
42	WP2205F060-19		Bottom, Oven   (Replaces: 2205F060-19)				$ 324.00
43	3807F727-45		Support, Oven Btm.				$ 18.96
44	4005F749-45		Cover, Front				$ 7.43
45	3401F092-45		Pan, Bake				$ 97.82
46	7103P212-60		Nut, Leveling Leg		Appelez-nous	-
47	3604F326-45		Shield, Warm. Dwr.		Appelez-nous	-
48	W10210594		Fan, Convection				$ 238.92
49	WPW10346154		Cover, Conv. Fan   (Replaces: 3605F323-19)			Immediately	$ 73.97
50	WP7450P108-60		Assy., Light Sw   (Replaces: 7450P109-60)			Immediately	$ 153.60
51	3804F300-51		Retainer, Insul.				$ 66.09
NI	7002P448-60		Insulation, Hidden Bake Cover				$ 53.11
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P471-60		Insulation, Wrap		Appelez-nous	-
