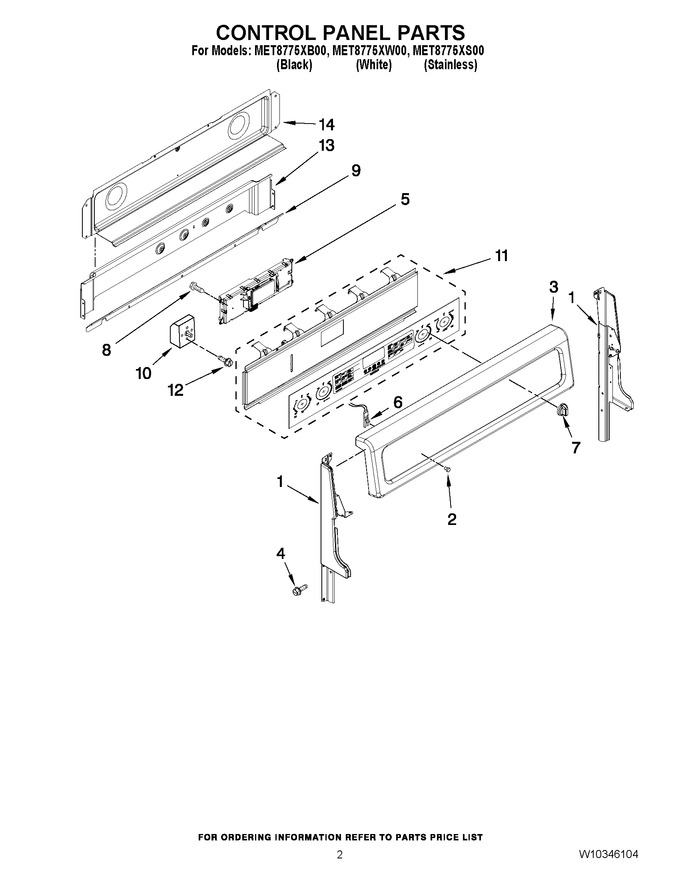

02 - Control Panel Parts


03 - Chassis Parts


04 - Upper Door Parts


05 - Lower Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black, Left)   (Replaces: W10312978)				$ 92.84
1	W10319112		Support, Backguard (white, Right)   (Replaces: W10312977)				$ 93.79
1	W10319110		Support, Backguard (white, Left)   (Replaces: W10312979)				$ 95.95
1	W10312976		Support, Backguard (black, Right)		Appelez-nous	-
2	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
3	W10097310		Console (stainless)				$ 116.84
3	W10097270		Console (white)				$ 118.50
3	W10097280		Console (black)				$ 119.25
4	WP98008545		Screw   (Replaces: 7101P633-60)				$ 18.60
5	W10267877		Electric, Control		Appelez-nous	-
6	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.91
7	W10294791		Knob (stainless)				$ 45.33
7	W10294796		Knob (black)				$ 21.03
7	W10294794		Knob (white)				$ 21.03
8	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
9	WPW10299338		Shield, Wire   (Replaces: W10299338)				$ 96.60
10	WP7403P238-60		Switch, Infinite (lr, Rr)   (Replaces: 7403P373-60)			Immediately	$ 64.20
10	WPW10295048		Switch, Infinite (rf)   (Replaces: W10295048)			Immediately	$ 159.95
10	WP74010824		Switch, Infinite (lf)   (Replaces: 7450P011-60)			Immediately	$ 112.13
11	W10321786		Assy., Membrane (incl. Bracket) (white)		Appelez-nous	-
11	W10321785		Assy., Membrane (incl. Bracket) (black)		Appelez-nous	-
11	W10321784		Assy., Membrane (incl. Bracket) (stainless)		Appelez-nous	-
12	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 7.30
