01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

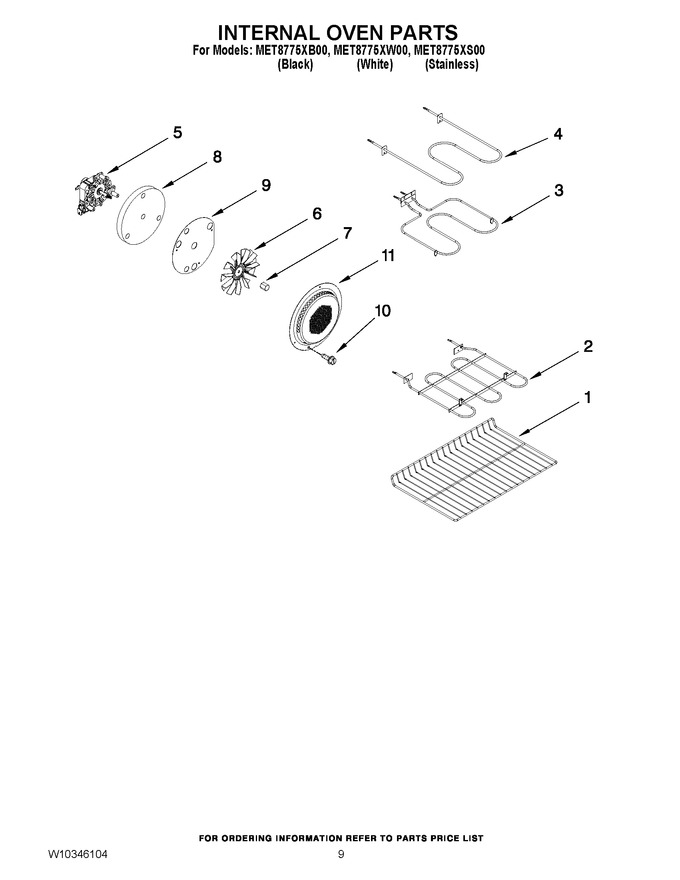

| 1 | WPW10179152 | Rack, Oven (3) (Replaces: W10179152) |
|
Immediately | $ 119.61 | ||||
| 2 | WPW10611615 | Element, Broil (lower) (Replaces: W10249979) |
|
Immediately | $ 204.96 | ||||
| 3 | W11662148 | Element, Bake (upper & Lower) (Replaces: W10249981) |
|
Immediately | $ 122.99 | ||||
| 4 | W11716849 | Element, Broil (upper) (Replaces: W10249977) |
|
$ 113.10 | |||||
| 5 | W11235883 | Motor, Convection (Replaces: W10272341) |
|
$ 222.15 | |||||
| 6 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 7 | WPW10116349 | Nut, Acorn (Replaces: W10116349) |
|
$ 21.78 | |||||
| 8 | W10274268 | Insulation, Convection Motor |
|
$ 82.68 | |||||
| 9 | W10339476 | Plate, Insul. Retainer |
|
$ 80.70 | |||||
| 10 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 11 | WPW10160821 | Cover, Fan (Replaces: 4448988) |
|
$ 285.59 |
