SELECT A DIAGRAM

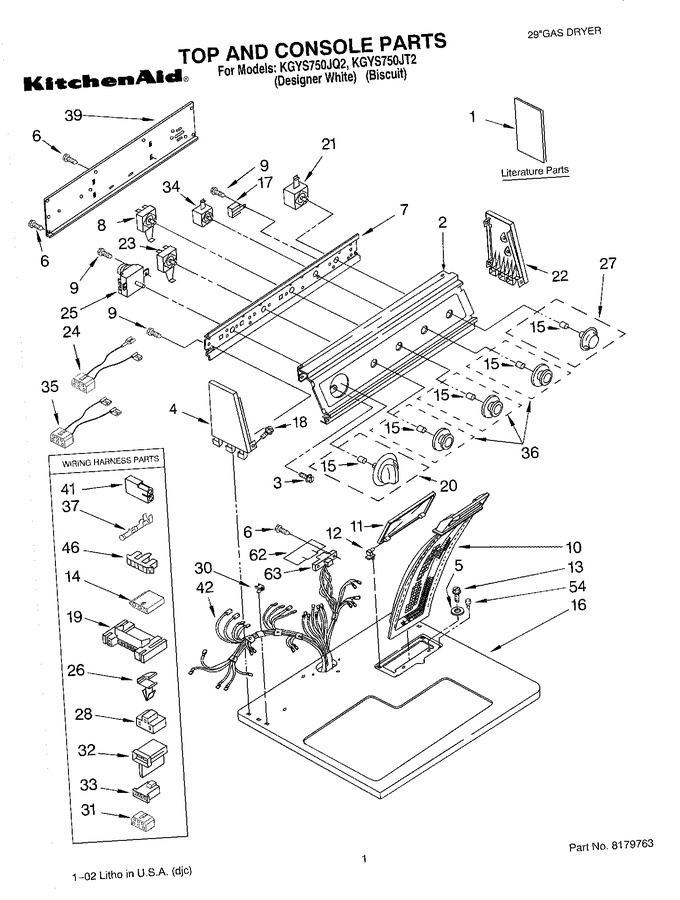

01 - Top And Console, Literature


02 - Cabinet


03 - Bulkhead


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8535832		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3405636		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3406667		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
2	3977964		Panel, Control (white)		Appelez-nous	-
2	3977965		Panel, Control (biscuit)		Appelez-nous	-
3	3400859		Screw, Grounding				$ 13.22
4	8274355		End Cap (l.h.) (biscuit)		Appelez-nous	-
4	8274353		End Cap (l.h.) (white)		Appelez-nous	-
5	237446		Washer		Appelez-nous	-
6	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
7	8271418		Bracket, Control				$ 57.15
8	WP3405156		Switch, Finish Gaurd   (Replaces: 3405156)				$ 145.51
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	8283380		Cover, Lint Screen (biscuit)		Appelez-nous	-
11	8283378		Cover, Lint Screen (white)				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	3936144		Connector (3-circuit)				$ 20.21
15	WP688805		Clip   (Replaces: 688805)			Immediately	$ 7.81
16	8274387		Top (biscuit)		Appelez-nous	-
16	8274386		Top (white)		Appelez-nous	-
17	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
18	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
19	3395683		Connector, Housing			Immediately	$ 51.86
20	3405302		Knob, Timer (biscuit)		Appelez-nous	-
20	3405299		Knob, Timer (white)				$ 24.31
21	WP3398094		Switch, Push-to-start   (Replaces: 3398094)			Immediately	$ 88.09
22	8274351		End Cap (r.h.) (biscuit)		Appelez-nous	-
22	8274349		End Cap (r.h.) (white)		Appelez-nous	-
23	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 124.91
24	3401695		Wire, Jumper (tan/black)		Appelez-nous	-
24	8283276		Wire, Jumper (white/yellow)		Appelez-nous	-
25	WP3976570		Timer, 60 Hz.   (Replaces: 3976570)				$ 368.17
26	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
27	3405992		Knob, Push To Start (white)		Appelez-nous	-
27	3405995		Knob, Push-to-start (biscuit)		Appelez-nous	-
28	3401144		Connector, (pts Relay)				$ 12.20
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
31	3347243		Connector 6-circuit		Appelez-nous	-
32	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
33	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
34	3399638		Switch, Signal				$ 129.75
35	8539893		Wire, Jumper (temperature)   (Replaces: 8283289)				$ 18.84
36	3949704		Knob, Control (3) (biscuit)		Appelez-nous	-
36	3949700		Knob, Control (3) (white)		Appelez-nous	-
37	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
39	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
41	717252		Receptacle, 2 Way		Appelez-nous	-
42	8299881		Harness, Gas		Appelez-nous	-
46	3397269		Connector, Timer				$ 25.55
54	297535		Bumper, Lint Lid		Appelez-nous	-
62	WPW10476828		Control, Electronic   (Replaces: 3390537)			Immediately	$ 314.22
63	3391885		Connector, Edge				$ 86.40

    View Diagram in Separate Window       Print Part List
