SELECT A DIAGRAM

01 - Top And Console, Literature

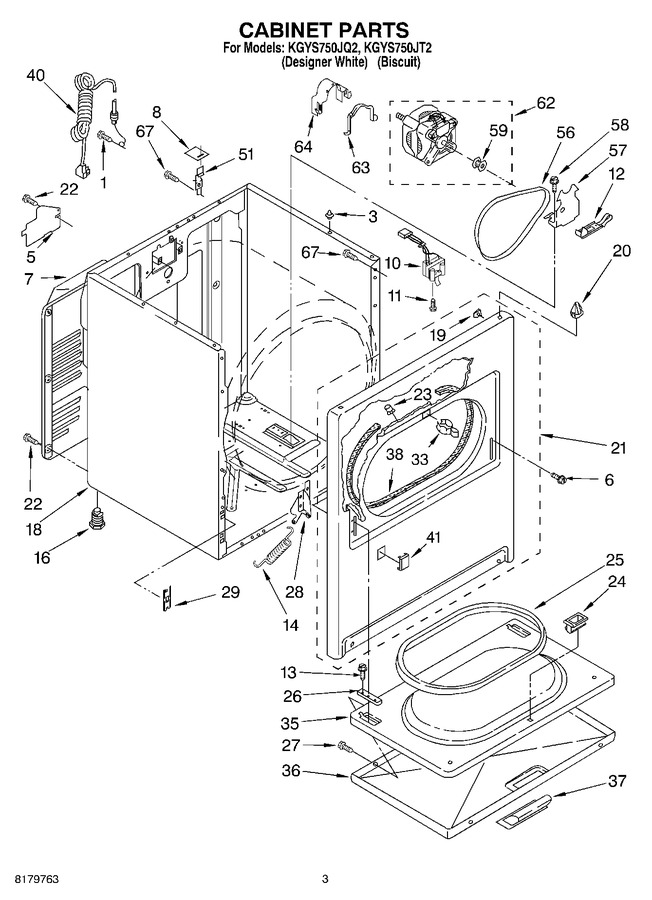

02 - Cabinet


03 - Bulkhead


04 - 8318272 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 79.72
3	98669		Locator, Top				$ 12.03
5	W11539855		Cover, Block Terminal   (Replaces: 3396795)			Immediately	$ 599.76
6	342043		Screw, 10-32 X 3/8		Appelez-nous	-
7	280043		Panel, Rear   (Replaces: 3396805)				$ 341.30
8	18849		Pad, Top Hinge				$ 20.14
10	WP3406107		Door, Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
12	WP691366		Idler & Slide Assembly   (Replaces: 3394332)			Immediately	$ 22.47
13	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
14	WPW10041960		Spring, Door (2) Panel (2)   (Replaces: 692495)			Immediately	$ 40.67
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
16	49621		Foot, Plastic Dryer (4)   (Replaces: 3392100)			Immediately	$ 8.55
18	8530606		Cabinet (biscuit)		Appelez-nous	-
18	8533643		Cabinet (white)   (Replaces: 8530603)				$ 399.26
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 12.68
21	3977243		Panel, Front (biscuit)		Appelez-nous	-
21	279740		Panel Front (white)   (Replaces: 3395197)				$ 361.97
22	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
24	WP3389441		Catch, Door   (Replaces: 3389441)				$ 6.20
25	W10906683		Seal, Door   (Replaces: 3390731)				$ 128.53
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 21.39
27	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.19
28	WP8066057		Hinge, L.h.   (Replaces: 8066057)				$ 96.14
28	WP8066056		Hinge, R.h.   (Replaces: 8066056)			Immediately	$ 98.56
29	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
35	WP695737		Door, Rear   (Replaces: 695737)				$ 254.56
36	WP3393549		Door, Front (white)   (Replaces: 3393549)				$ 176.51
36	3977241		Door, Front (biscuit)		Appelez-nous	-
37	3977242		Handle, Door (biscuit)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 690270)				$ 77.89
38	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
40	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
41	3394975		Plug-panel Front (white)				$ 5.70
41	3394978		Plug-panel Front (biscuit)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
56	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
59	WP8066184		Pulley, Motor   (Replaces: 3394341)			Immediately	$ 51.02
62	279827		Motor, Drive 60 Hz.   (Replaces: 661654)			Immediately	$ 191.95
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
64	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
67	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
67	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
67	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
67	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
67	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
67	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
67	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
67	3406839		Dry Rack			Immediately	$ 65.68
67	4392899		Biscuit			Immediately	$ 26.45
67	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
67	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46

    View Diagram in Separate Window       Print Part List
