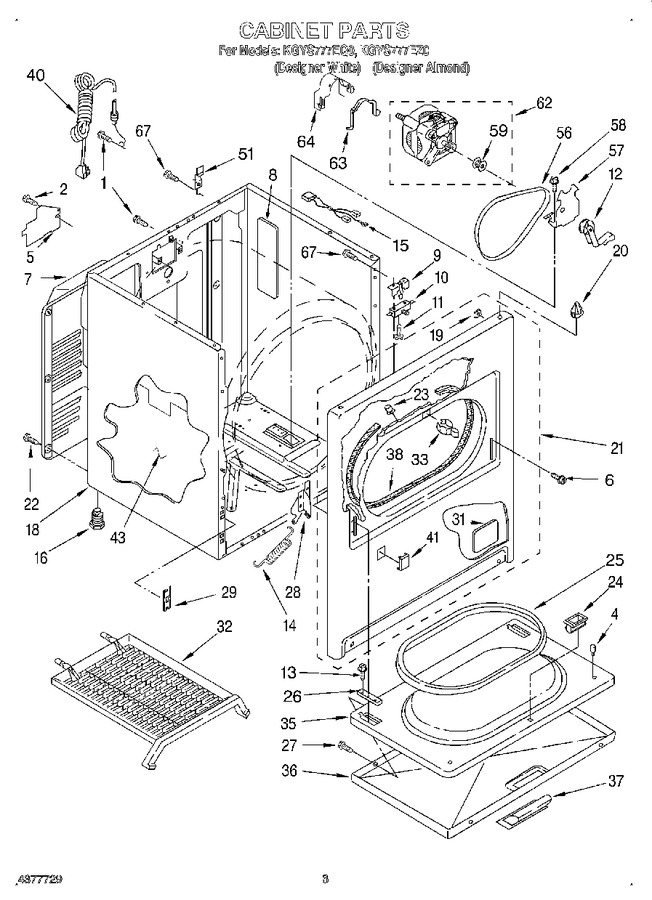

02 - Cabinet


03 - Bulkhead


04 - 3401771 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 1/2   (Replaces: 697776)				$ 7.76
2	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
4	238614		Bumper (2)				$ 84.79
5	W11539855		Cover, Block Terminal   (Replaces: 3396795)			Immediately	$ 599.76
6	342043		Screw, 10-12 X 1/2		Appelez-nous	-
7	280043		Panel, Rear   (Replaces: 3396805)				$ 358.37
8	3948606		Panel, Sound Dampening		Appelez-nous	-
9	WP691581		Clip, Door Switch   (Replaces: 691581)			Immediately	$ 8.09
10	W10820036		Switch, Door   (Replaces: 3397503)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 7.56
12	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
13	WP308685		Screw, 10-12 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
14	WPW10041960		Spring, Door (2) Panel (2)   (Replaces: 692495)			Immediately	$ 40.67
15	WP3406107		Harness, Wiring (door Switch)   (Replaces: 3405101)			Immediately	$ 31.20
16	49621		Foot, Plastic Dryer (4)   (Replaces: 3392100)			Immediately	$ 8.55
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
18	3399585		Cabinet (white)		Appelez-nous	-
18	3399586		Cabinet (almond (includes Illus. Nos. 5, 7, 16 And 57))		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 12.68
21	279740		Panel Front (white)   (Replaces: 3395197)				$ 380.07
21	3395198		Panel, Front (almond)		Appelez-nous	-
22	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door   (Replaces: 3398175)			Immediately	$ 8.89
25	W10906683		Seal, Door   (Replaces: 3390731)				$ 128.53
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 21.39
27	WP694091		Screw   (Replaces: 694091)				$ 7.19
28	WP8066056		Hinge, R.h.   (Replaces: 692498)			Immediately	$ 98.56
28	WP8066057		Hinge, L.h.   (Replaces: 692501)				$ 96.14
29	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
31	3949206		Panel, Sound Dampening		Appelez-nous	-
32	3406839		Dry Rack Assembly   (Replaces: 3404337)			Immediately	$ 65.68
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
35	WP695737		Door, Rear   (Replaces: 695737)				$ 254.56
36	WP3393549		Door, Front (white)   (Replaces: 3393549)				$ 176.51
36	3393550		Door, Front (almond)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 690270)				$ 77.89
37	690271		Handle, Door (almond)		Appelez-nous	-
38	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
40	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
41	3394976		Plug, Front Panel (almond)		Appelez-nous	-
41	3394975		Plug-panel Front (white)				$ 5.70
43	3402709		Board, Sound Dampening		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
56	341241		Belt, Drive   (Replaces: 660996)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 14.04
59	WP8066184		Pulley, Motor   (Replaces: 3401143)			Immediately	$ 51.02
62	279827		Motor, Drive 60 Hz.   (Replaces: 3395652)			Immediately	$ 191.95
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
64	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
67	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
