SELECT A DIAGRAM
01 - Top And Console, Lit/optional
02 - Cabinet

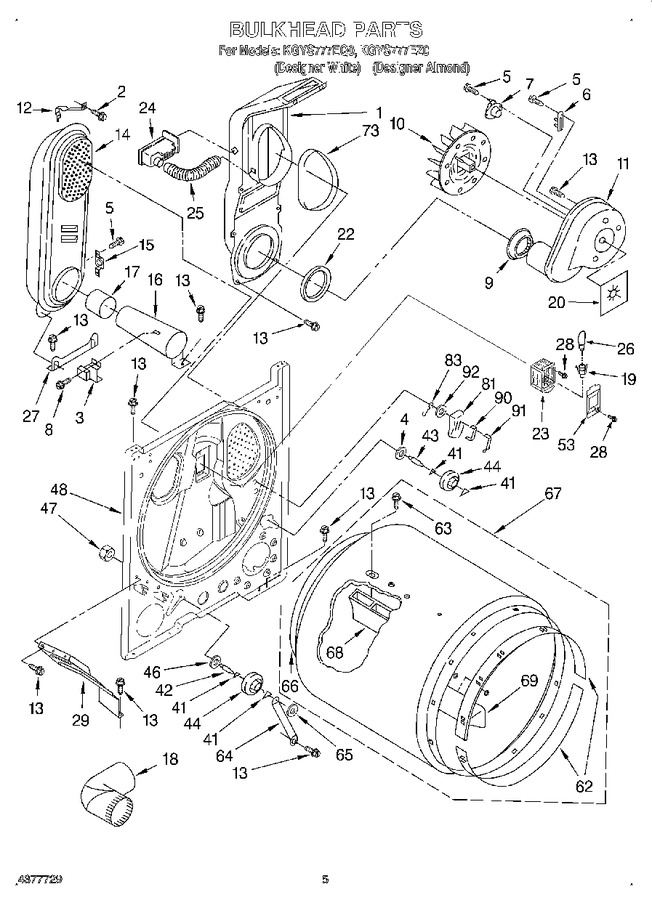

03 - Bulkhead
04 - 3401771 Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 686214 | Lint Chute Assembly |
|
- | |||||
| 2 | WP489463 | Screw, 8-18 X 3/4 (Replaces: 3400800) |
|
$ 7.82 | |||||
| 3 | WP338906 | Radiant, Sensor (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 4 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 5 | WP90767 | Screw, 8 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 7 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 8 | WP3390631 | Screw (Replaces: 339554) |
|
$ 7.82 | |||||
| 9 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 3405016) |
|
$ 177.95 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 279900 | Box, Heater (Replaces: 685458) |
|
$ 344.36 | |||||
| 15 | W11050897 | Thermostat, 205~f (96~c) (Replaces: 3403140) |
|
Immediately | $ 15.30 | ||||
| 16 | 279900 | Funnel, Burner (Replaces: 347389) |
|
$ 344.36 | |||||
| 17 | 279900 | Collar, Funnel (Replaces: 348516) |
|
$ 344.36 | |||||
| 18 | 3404332 | 4``- 90~ Elbow (exhaust) |
|
- | |||||
| 19 | W11700522 | Socket Assembly (Replaces: 3403634) |
|
$ 73.15 | |||||
| 20 | 3392123 | Seal, Blower |
|
- | |||||
| 22 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 23 | 3977373 | Bracket, Drum Light (Replaces: 3404232) |
|
$ 105.79 | |||||
| 24 | 690981 | Alert, Lint |
|
- | |||||
| 25 | 686577 | Hose, Differential |
|
- | |||||
| 26 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.66 | ||||
| 27 | 348484 | Support, Box |
|
- | |||||
| 28 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 29 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 56.08 | |||||
| 41 | WPW10512946 | Tri Ring (4) (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 44 | WPW10314173 | Support, Roller (Replaces: 3396801) |
|
Immediately | $ 28.50 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 48 | W10828905 | Bulkhead (Replaces: 3403414) |
|
Immediately | $ 359.30 | ||||
| 53 | W11226088 | Lens, Drum Light (Replaces: 3403635) |
|
$ 31.09 | |||||
| 62 | 279441 | Ring, Bearing (2) (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 63 | WPW10109200 | Screw, 11-16 X 7/8 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 64 | W11684613 | Bracket, Shaft (Replaces: 3394133) |
|
$ 20.94 | |||||
| 65 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 66 | W10612022 | Seal, Rear (Replaces: 3406130) |
|
Immediately | $ 57.15 | ||||
| 67 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 357.65 | |||||
| 68 | WP692490 | Baffle, Drum (long) (2) (Replaces: 692490) |
|
$ 159.27 | |||||
| 69 | WP3403636 | Baffle, Drum (short) (1) (Replaces: 3403636) |
|
$ 138.66 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 81 | 279366 | Pad, Sensor (Replaces: 348861) |
|
$ 95.85 | |||||
| 83 | WP342267 | Clip, Sensor (2) (Replaces: 342267) |
|
$ 7.75 | |||||
| 90 | WP348859 | Electrode, Inside (Replaces: 348859) |
|
$ 7.98 | |||||
| 91 | WP348860 | Electrode, Outside (Replaces: 348860) |
|
$ 8.05 | |||||
| 92 | WP298877 | Washer, Insulating (Replaces: 298877) |
|
$ 22.58 |
