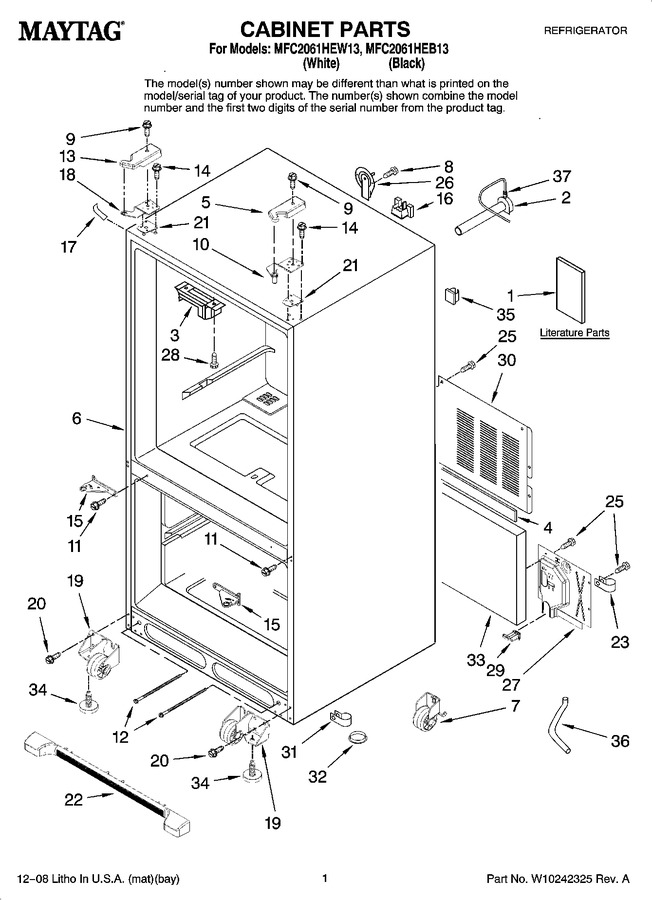

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10137641 | Owners Manual |
|
- | |||||
| 1 | 67005722 | Energy Guide |
|
- | |||||
| 1 | 67006616 | Tech Sheet |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 119.86 | ||||
| 3 | WP67003405 | Block, Pivot (Replaces: 67003405) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 8208261 | Cover, Right Hinge (white) |
|
- | |||||
| 5 | 12684202B | Cover, Right Hinge (black) |
|
- | |||||
| 7 | 67006118 | Roller Assy.(rear) |
|
- | |||||
| 8 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | WP12566606ED | Hinge, Top Right (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 67006380) |
|
$ 14.72 | |||||
| 12 | 67006697 | Bolt, Adjusting (rear) |
|
$ 12.88 | |||||
| 13 | 8208248 | Cover, Left Hinge (black) |
|
- | |||||
| 13 | 12684201W | Cover, Left Hinge (white) |
|
- | |||||
| 14 | WP489349 | Screw (6) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918164 | Hinge, Center (black, Right) (Replaces: 67006443) |
|
$ 91.53 | |||||
| 15 | 67006442 | Hinge, Center (black, Left) |
|
$ 120.77 | |||||
| 15 | W10918113 | Hinge, Center (white, Left) (Replaces: 67006277) |
|
$ 97.92 | |||||
| 15 | 67006379 | Hinge, Center (white, Right) |
|
- | |||||
| 16 | 67004092 | Block, Fill Tube |
|
- | |||||
| 17 | 67003485 | Cover, Corner (2) (black) |
|
Immediately | $ 22.14 | ||||
| 17 | 67003484 | Cover, Corner (2) (white) |
|
$ 21.42 | |||||
| 18 | WP12566607ED | Hinge, Top Left (Replaces: 12566605ED) |
|
$ 91.09 | |||||
| 19 | W11820445 | Roller Assy.(front) (right) (Replaces: W10130459) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820444 | Roller Assy.(front) (left) (Replaces: W10130460) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (8) |
|
Immediately | $ 8.15 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | W10131134 | Grille, Toe (black) |
|
$ 53.25 | |||||
| 22 | W10131133 | Grille, Toe (white) |
|
- | |||||
| 23 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 25 | 67006425 | Screw (10) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line (Replaces: 67003331) |
|
$ 19.19 | |||||
| 27 | 67004098 | Cover, Water Valve |
|
- | |||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 67006669) |
|
Immediately | $ 8.36 | ||||
| 29 | 12831101 | Sweep, Dual Tube (Replaces: 67004101) |
|
$ 13.03 | |||||
| 30 | 67006101 | Cover, Unit |
|
$ 76.68 | |||||
| 31 | 67001067 | Clip, Drain Tube |
|
$ 9.66 | |||||
| 32 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 33 | 67003796 | Insulation, Sound |
|
$ 19.27 | |||||
| 34 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | WPM0104106 | Clip (2) (Replaces: M0104106) |
|
$ 8.17 | |||||
| 36 | 67001066 | Tube, Drain |
|
$ 55.82 | |||||
| 37 | WPM0114003 | Clip (Replaces: M0114003) |
|
$ 11.60 |
