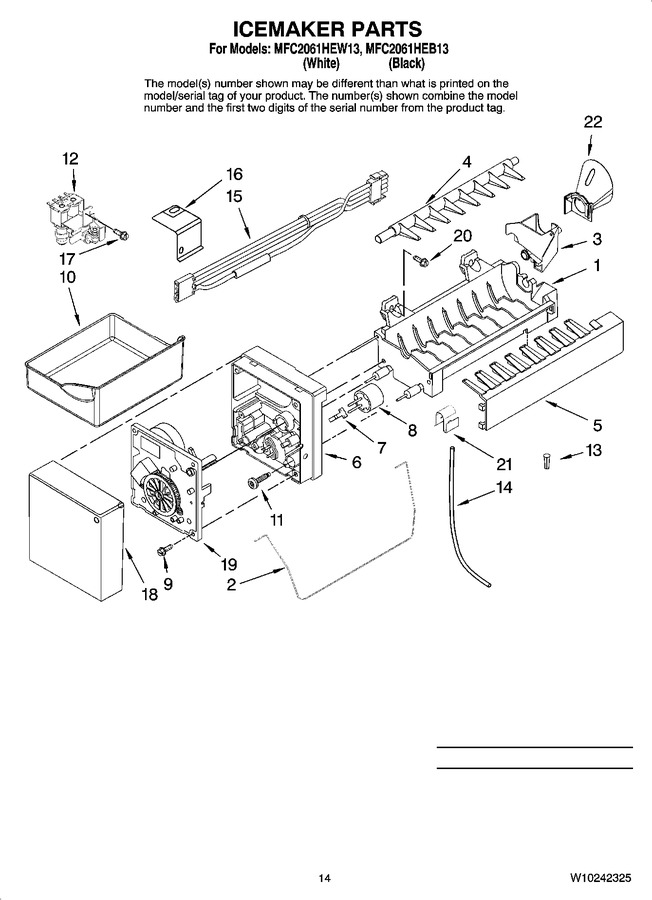

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10190929		Mold & Heater Assembly (alsoorder 542638 Grease)   (Replaces: W10122527)				$ 233.15
2	WP67004028		Arm, Shutoff   (Replaces: 67004028)			Immediately	$ 91.35
3	W10122561		Cup, Fill   (Replaces: 628515)				$ 27.77
4	WP627843		Ejector   (Replaces: 627843)				$ 83.60
5	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 86.05
6	WP2195914		Support, Housing   (Replaces: 2194712)				$ 104.57
7	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 11.05
8	WP627985		Thermostat (also Order 542369 Cement)   (Replaces: 627985)				$ 109.18
9	WP489464		Screw (3)   (Replaces: 489464)			Immediately	$ 7.83
10	WP67001255		Pan, Ice   (Replaces: 67001255)				$ 203.08
11	8533917		Screw (2)				$ 13.37
12	WP67006531		Valve, Water Inlet   (Replaces: 67006531)			Immediately	$ 167.68
13	WPA3223101		Insert, Tube   (Replaces: A3223101)			Immediately	$ 7.82
14	WPB5705307		Tubing, Plastic   (Replaces: 67003729)				$ 12.43
15	WPD7813010		Harness, Ice Maker   (Replaces: W10146389)			Immediately	$ 73.97
16	WP2256087		Bracket, Ice Maker   (Replaces: 2256086)				$ 93.00
17	WP489128		Screw   (Replaces: 67006662)				$ 10.88
18	WPW10289690		Cover   (Replaces: 67004710)			Immediately	$ 8.40
19	8201515		Module Assembly   (Replaces: 626678)			Immediately	$ 141.64
20	WP681249		Screw (3)   (Replaces: 489276)			Immediately	$ 7.86
21	WP628379		Clip   (Replaces: 628379)				$ 10.57
22	12918001		Funnel, Fill Tube   (Replaces: 67005603)			Immediately	$ 12.41
100	D7824706Q		Icemaker Assembly			Immediately	$ 167.35
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.18
NI	31462		Cleaner, 10 Oz. (stainless Steel)		Appelez-nous	-
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
NI	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
NI	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	10244904		Coupling				$ 25.37
NI	350942		Paint, Pressurized Spray (12 Oz) (primer, White)				$ 89.66
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 57.04
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	876370		Kit, Insulation (2 Pcs. X 3`` X 24``x 48``)				$ 231.56
NI	876029		Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``)		Appelez-nous	-
NI	606755		Bag, Insulation(36-5/8`` X 46``)				$ 78.45
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.07
NI	1117510		Torx Key				$ 5.84
