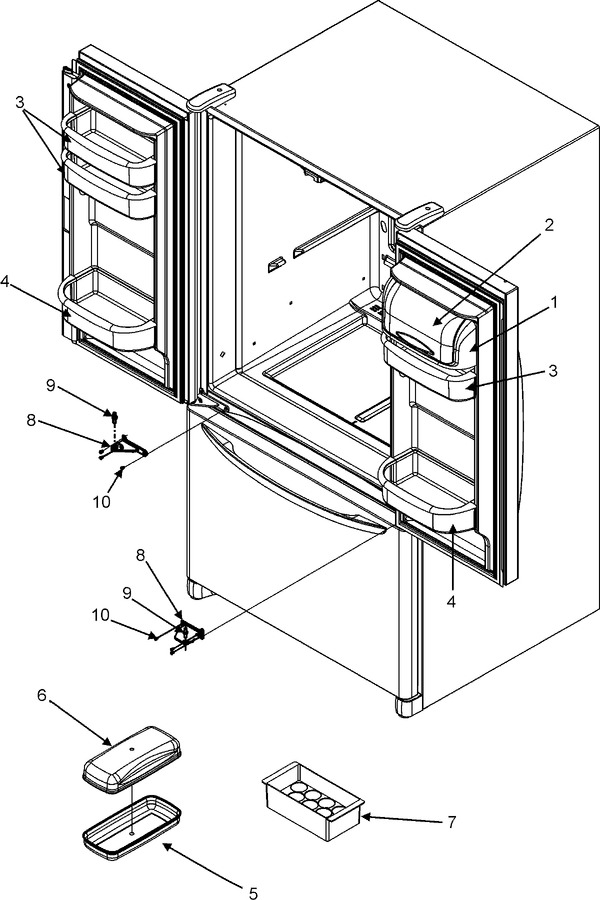

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 88.01
2	WP67003637		Door, Dairy   (Replaces: 67003637)	10		Immediately	$ 82.67
3	67004040		Bucket, Ref Dr (med)	10			$ 95.99
4	67004641		Bucket, Ref Dr Gal	10			$ 45.66
5	67004404		Tray, Butter	10	Appelez-nous	-
6	67004405		Lid, Butter Tray	10	Appelez-nous	-
7	67215-2		Tray, Egg	10	Appelez-nous	-
8	67006379		Hinge, Center (rt-wht)	12	Appelez-nous	-
8	W11689473		Hinge, Center (wht)   (Replaces: 67001168)	10			$ 69.79
8	W10918113		Hinge, Center (lt-wht)   (Replaces: 67006277)	12			$ 97.92
9	WP67006642		Pin, Center Hinge   (Replaces: 67002734)	10			$ 8.78
10	W11573362		Screw, T. F.   (Replaces: M0226233)	10			$ 14.72

    View Diagram in Separate Window       Print Part List
