SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor & Cond Motor


03 - Controls


04 - Crisper Assembly


05 - Evaporator/evap Motor/rollers


06 - Freezer Door


07 - Freezer Shelves


08 - Handles (mfc2061heb/w-series 10)


09 - Handles (mfc2061heb/w-series 12)


10 - Ice Maker


11 - Interior Cabinet & Toe Grille


12 - Left Refrigerator Door


13 - Pantry Assembly


14 - Ref Dr Storage & Center Hinges


15 - Refrigerator Shelves


16 - Right Refrigerator Door


17 - Supplemental Information


18 - Water Dispenser/water Tank/water Filter


19 - Wiring Information (series 10)


20 - Wiring Information (series 12)

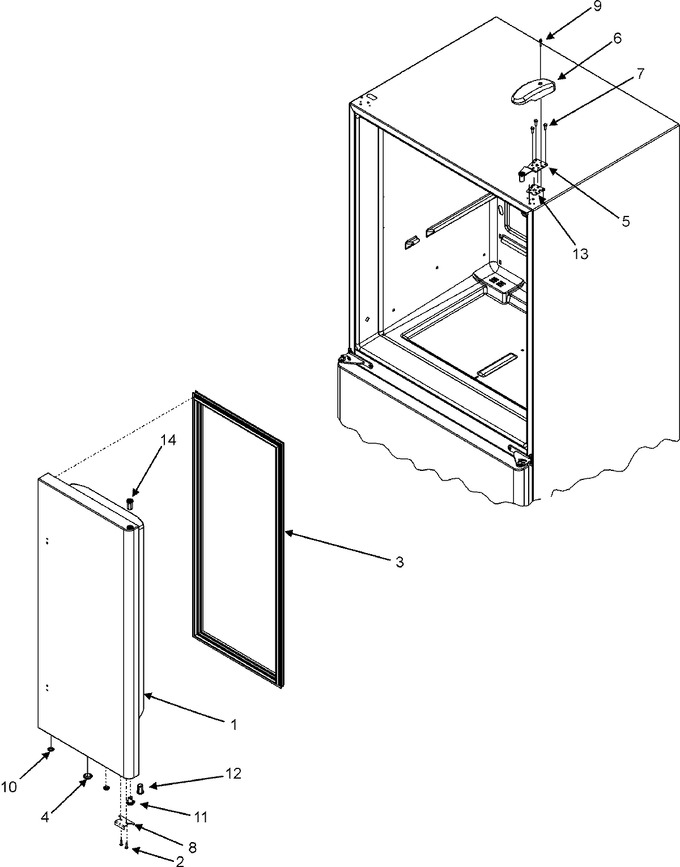

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006593		Door Assy., Rt Ref. Foam (wht)	12	Appelez-nous	-
1	67002727		Door Assy., Rt Ref. Foam (wht)	10	Appelez-nous	-
2	WPW10348409		Screw, Mounting   (Replaces: M0211533)	10		Immediately	$ 8.20
3	W10830189		Gasket, French Door (wht)   (Replaces: 67003546)	10		Immediately	$ 228.91
4	A3080002		Plug, Button (wht)	10	Appelez-nous	-
5	WP12566606ED		Hinge, Top (blk)   (Replaces: 67001011)	10		Immediately	$ 47.13
6	12684202W		Cover, Top Hinge (rt-wht)	10	Appelez-nous	-
7	R9800670		Screw, Tf   (Replaces: M0238731)	10			$ 10.58
8	67006278		Stop, Door (wht)	12	Appelez-nous	-
8	12968202W		Stop, Door (wht)   (Replaces: 67003779)	10			$ 69.29
9	WP8281196		Screw-mach   (Replaces: M0202327)	10		Immediately	$ 7.55
10	10712401		Plug, Vent (wht)	10			$ 7.79
11	WP67003638		Closure, Door (wht)   (Replaces: 67003638)	10		Immediately	$ 8.15
12	12028601W		Bushing, Door (wht)   (Replaces: 67002732)	10			$ 24.03
13	12579702		Shim, Top Hinge	10	Appelez-nous	-
14	WP67004977		Bushing, Door (wht)   (Replaces: 67004977)	10			$ 8.20

    View Diagram in Separate Window       Print Part List
