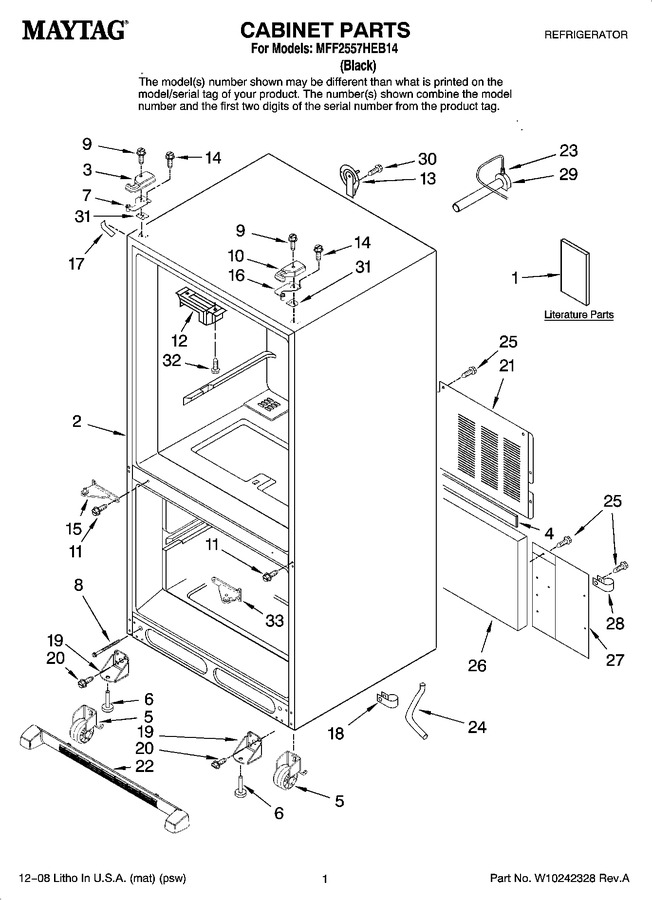

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10123930 | Energy Guide |
|
- | |||||
| 1 | 12827952 | Tech Sheet |
|
- | |||||
| 1 | W10137641 | Use & Care Guide |
|
- | |||||
| 3 | 8208248 | Cover, Left Hinge (black) |
|
- | |||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 67006118 | Roller Assy. (2) |
|
- | |||||
| 6 | W11177593 | Foot Brake (Replaces: 67003868) |
|
$ 12.18 | |||||
| 7 | WP12566606ED | Hinge, Left Top (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 67006611) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | 12684202B | Cover, Right Hinge (black) |
|
- | |||||
| 11 | WP489349 | Screw (Replaces: 67005822) |
|
Immediately | $ 8.43 | ||||
| 12 | WP67003405 | Block, Pivot (Replaces: 67003405) |
|
Immediately | $ 8.21 | ||||
| 13 | 12726003 | Cover, Water Line (Replaces: 67003331) |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | 67006442 | Hinge, Center (lt) (black) |
|
$ 120.77 | |||||
| 16 | WP12566607ED | Hinge, Right Top (Replaces: 12566605ED) |
|
$ 91.09 | |||||
| 17 | 67003485 | Cover, Corner (black) |
|
Immediately | $ 22.14 | ||||
| 18 | 67001067 | Clip, Drain |
|
$ 9.66 | |||||
| 19 | 12906303WD | Bracket, Foot (2) (Replaces: 67007174) |
|
$ 88.58 | |||||
| 20 | 67006564 | Screw (4) |
|
Immediately | $ 8.15 | ||||
| 21 | 67006101 | Cover, Unit |
|
$ 76.68 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: 67006375) |
|
$ 154.57 | |||||
| 23 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 24 | 67001066 | Tube, Drain |
|
$ 55.82 | |||||
| 25 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 26 | 67003796 | Fiber, Acoustic |
|
$ 19.27 | |||||
| 27 | 12479803 | Cover, Water Valve |
|
- | |||||
| 28 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 29 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 119.86 | ||||
| 30 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 31 | 12579702 | Shim, Top Hinge |
|
- | |||||
| 32 | WP7101P126-60 | Screw, Block (Replaces: 67006669) |
|
Immediately | $ 8.36 | ||||
| 33 | W10918164 | Hinge, Center (rt) (black) (Replaces: 67006443) |
|
$ 91.53 |
