Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13024018BQ Door, Left (black) Appelez-nous -
2 13024017BQ Door, Right (black) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 67003637) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 88.01

5 67005250 Bucket, Door (gallon (2)) Appelez-nous -
5 67001020 Bucket, Door (medium (3)) Special Order $ 32.95

6 WP12722803B Mullion, Door (black)   (Replaces: 67003264) In-Stock Immediately $ 206.80

7 W11311945 Screw   (Replaces: 67006786) Special Order $ 14.72

8 W10436252 Gasket, Door (black)   (Replaces: W10131754) In-Stock Immediately $ 362.28

9 W10119653 Handle, Door (black) Special Order $ 76.38

10 WP98165 Screw   (Replaces: 67006287) Special Order $ 8.57

11 W11708403 Stop, Door (black)   (Replaces: 67007011) In-Stock Immediately $ 14.75

12 2324038 Nameplate   (Replaces: 67006439) Special Order $ 71.59

14 WP12992902 Screw, Handle   (Replaces: 12992902) Special Order $ 11.91

15 WP67003639 Closure, Door (black)   (Replaces: 67003639) Special Order $ 90.32


    View Diagram in Separate Window     Print Icon   Print Part List

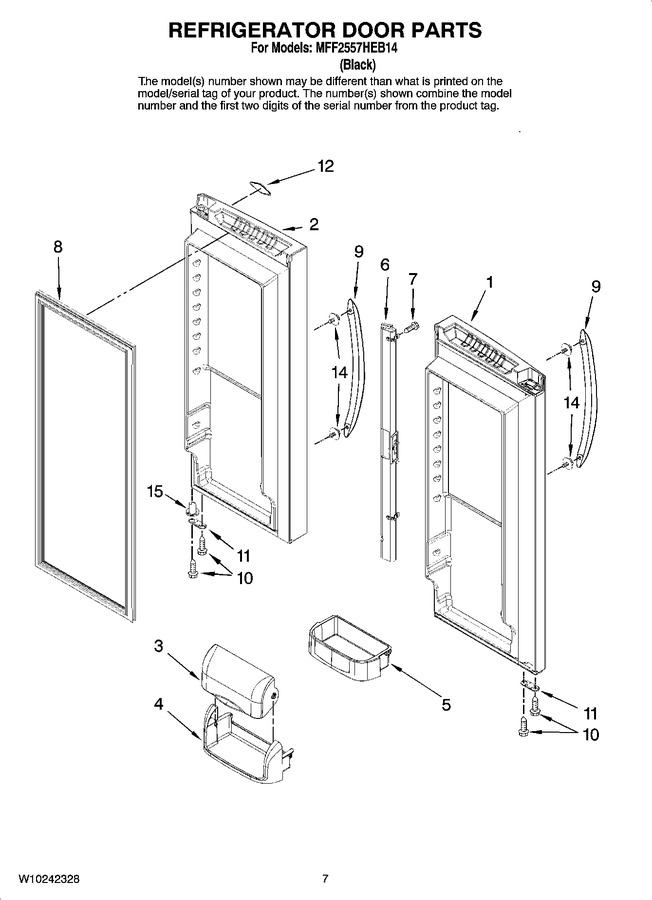

Diagram for MFF2557HEB14
