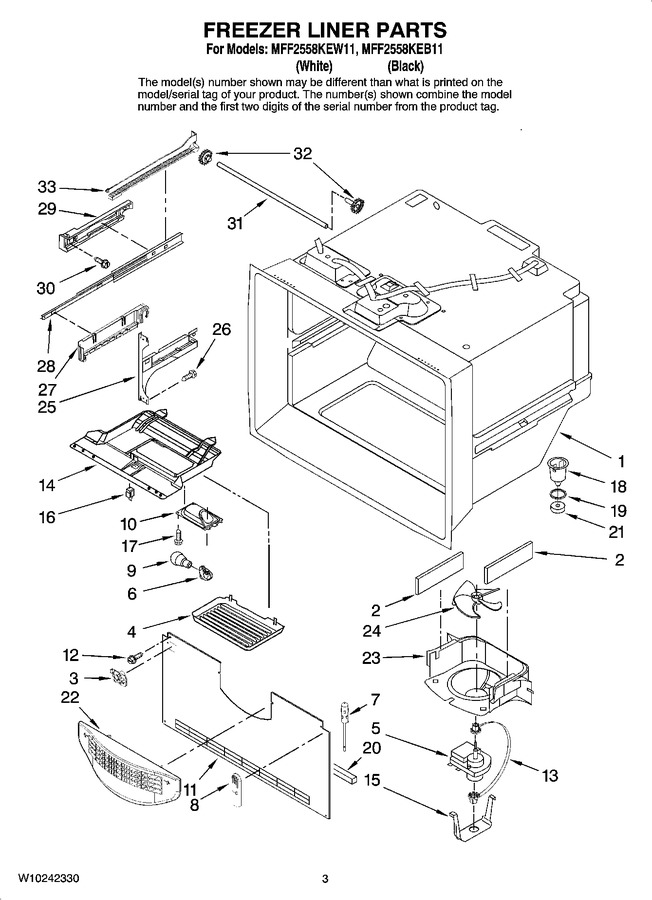

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: 67001291) |
|
Immediately | $ 7.68 | ||||
| 3 | W11448709 | Guide, Fill Tube (Replaces: 67005874) |
|
$ 24.64 | |||||
| 4 | 67003905 | Cover, Light |
|
- | |||||
| 5 | WPW10128551 | Motor, Evaporator (Replaces: 67003636) |
|
Immediately | $ 78.75 | ||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.21 | ||||
| 7 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 8 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 7.82 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 85.82 | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: 67005873) |
|
$ 89.54 | |||||
| 12 | 67006425 | Screw |
|
Immediately | $ 6.95 | ||||
| 13 | W10121318 | Grommet |
|
$ 48.38 | |||||
| 14 | 67003906 | Module, Light |
|
$ 116.80 | |||||
| 15 | 13058002 | Clip, Evap. Motor (Replaces: W10167028) |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 37.30 | ||||
| 17 | 67006530 | Screw |
|
- | |||||
| 18 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 20 | W11159728 | Gasket, Bottom (Replaces: 67002492) |
|
Immediately | $ 28.86 | ||||
| 21 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: W10175909) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: W10167023) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | WPW10330993 | Bracket-door (right) (Replaces: W10122148) |
|
$ 158.18 | |||||
| 25 | WPW10330991 | Bracket-door (left) (Replaces: W10122147) |
|
$ 156.49 | |||||
| 26 | WP98165 | Screw (8) (Replaces: 67006473) |
|
$ 8.00 | |||||
| 27 | WPW10280613 | Cradle, Basket (right) (Replaces: 67004015) |
|
$ 87.76 | |||||
| 27 | WPW10280608 | Cradle, Basket (left) (Replaces: 67004014) |
|
$ 87.76 | |||||
| 28 | W11658402 | Slide-drawer (2) (Replaces: W10120018) |
|
Immediately | $ 127.51 | ||||
| 29 | W10128119 | Adapter, Slide (right) |
|
- | |||||
| 29 | W10128118 | Adapter, Slide (left) |
|
- | |||||
| 30 | WP489474 | Screw (6) (Replaces: 67006406) |
|
Immediately | $ 7.97 | ||||
| 31 | W11028221 | Shaft (Replaces: 67004017) |
|
$ 31.66 | |||||
| 32 | 12002497 | Gear (includes Lh & Rh) |
|
Immediately | $ 22.51 | ||||
| 33 | W11489993 | Rail, Side (left) (Replaces: W10146443) |
|
$ 22.34 | |||||
| 33 | W11489994 | Rail, Side (right) (Replaces: W10146444) |
|
$ 22.34 | |||||
| NI | 67006095 | Harness, Lights (freezer) |
|
- |
