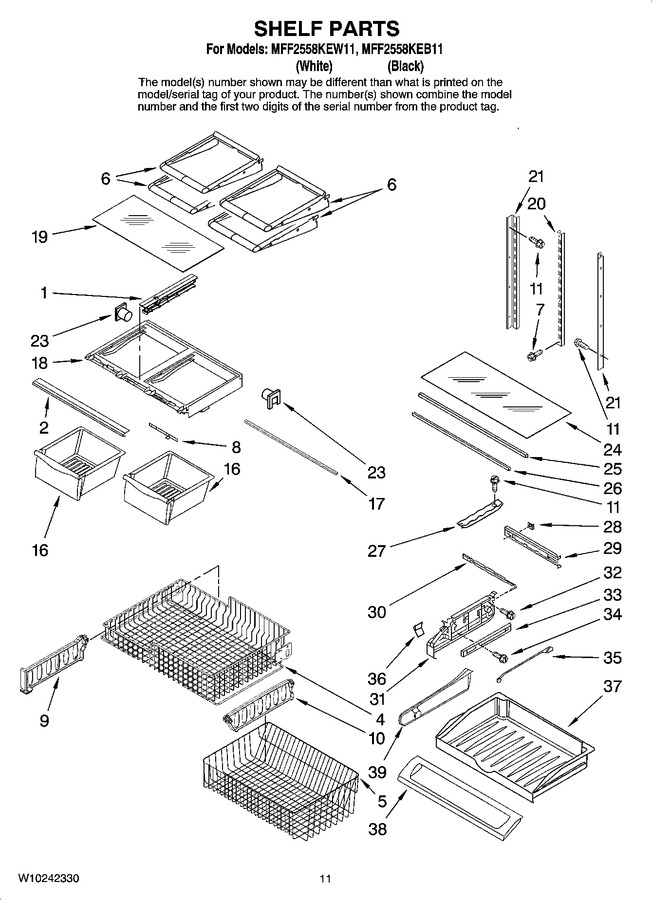

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: 67004514)			Immediately	$ 30.70
2	WPW10231345		Trim, Crisper   (Replaces: 67004510)				$ 131.11
4	67004987		Basket, Freezer (upper)				$ 244.35
5	WPW10503184		Basket, Freezer (lower)   (Replaces: 67006025)				$ 238.17
6	67004435		Shelf (4)		Appelez-nous	-
7	W10709795		Screw   (Replaces: 67006360)				$ 13.13
8	WP67005864		Slide, Humidity Control (2)   (Replaces: 67005864)			Immediately	$ 7.81
9	67004127		Divider, Basket (upper)				$ 10.10
10	67006644		Divider, Basket (lower)		Appelez-nous	-
11	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
16	WP67004515		Pan, Crisper   (Replaces: 67004515)			Immediately	$ 168.30
17	WP12642303WD		Brace, Crisper   (Replaces: 67002748)				$ 106.91
18	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
19	WP67006704		Glass, Crisper Cover   (Replaces: 67006704)				$ 212.77
20	67001073		Ladder, Center				$ 54.18
21	67002489		Ladder, Side				$ 71.09
23	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 10.31
24	67002761		Glass, Pantry				$ 103.45
25	W11812285		Trim, Pantry Glass   (Replaces: 67006010)				$ 50.79
26	WP12227305WD		Brace, Pantry (2)   (Replaces: 67002330)				$ 103.20
27	WP67001719		Track, Pantry   (Replaces: 67001719)			Immediately	$ 8.56
28	67002329		Gasket, Pantry				$ 21.04
29	12656202		Housing, Control   (Replaces: 67005625)				$ 141.75
30	WP67003793		Slide, Control   (Replaces: 67003793)			Immediately	$ 74.75
31	W10874836		Endcap, Pantry (right)   (Replaces: 67005858)			Immediately	$ 38.43
31	W10874836		Endcap, Pantry (left)   (Replaces: 67005863)			Immediately	$ 38.43
32	WP98165		Screw (4)   (Replaces: 67006287)				$ 8.00
33	WPW10235370		Glide, Pantry (2)   (Replaces: 67007026)			Immediately	$ 199.80
34	WP67006415		Screw (4)   (Replaces: 67006415)				$ 7.80
35	WP67003795		Bar, Temp Cont.   (Replaces: 67003795)				$ 8.05
36	W11498983		Knob, Control   (Replaces: 67003791)				$ 29.18
37	WP67003531		Drawer, Pantry   (Replaces: 67003531)				$ 162.82
38	W10827015		Lid, Pantry   (Replaces: 67005903)			Immediately	$ 175.81
39	WP67002759		Divider, Pantry   (Replaces: 67002759)			Immediately	$ 58.33
