SELECT A DIAGRAM
New Model Search:

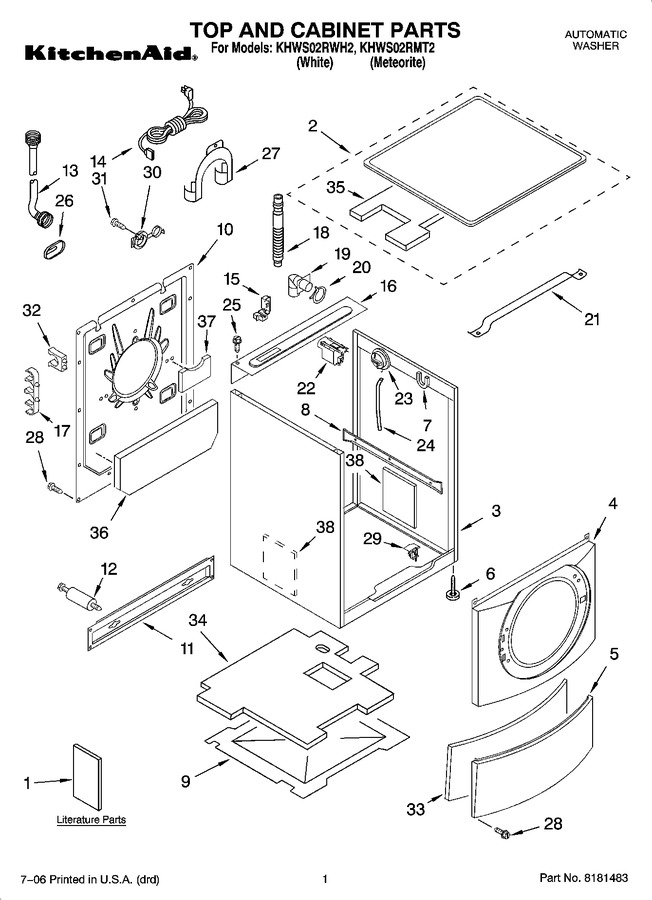

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8182208 | Tech Sheet |
|
- | |||||
| 1 | 8182751 | Use & Care Guide |
|
- | |||||
| 1 | 8182142 | Dvd-instruction |
|
- | |||||
| 1 | 8182658 | Quick Start Guide |
|
- | |||||
| 2 | 8182772 | Top (includes Illus. 35) (white) |
|
- | |||||
| 2 | 8182773 | Top (includes Illus. 35) (meteorite) |
|
- | |||||
| 3 | 8182145 | Cabinet (meteorite) |
|
- | |||||
| 3 | 8182609 | Cabinet (white) |
|
- | |||||
| 4 | 8182146 | Panel, Front (meteorite) |
|
- | |||||
| 4 | 8182605 | Panel, Front (white) |
|
- | |||||
| 5 | 8181643 | Toe Panel (white) |
|
- | |||||
| 5 | 8182148 | Toe Panel (meteorite) |
|
- | |||||
| 6 | 8181636 | Foot, Leveling |
|
$ 9.57 | |||||
| 7 | WP8181763 | Bracket, Spring (Replaces: 8181763) |
|
$ 79.99 | |||||
| 8 | 8183008 | Brace, Side Panel |
|
- | |||||
| 9 | 8181635 | Pan, Bottom |
|
$ 66.73 | |||||
| 10 | 8182698 | Panel, Rear |
|
- | |||||
| 11 | WPW10003040 | Brace, Transport (Replaces: 8182661) |
|
$ 96.77 | |||||
| 12 | W10289554A | Bolt, Shipping (lower) (Replaces: 8182798) |
|
$ 64.96 | |||||
| 12 | W10289554A | Bolt, Shipping (upper) (Replaces: 8182797) |
|
$ 64.96 | |||||
| 13 | WP89503 | Hose, Water Inlet (blue Coupler) (Replaces: 8182795) |
|
Immediately | $ 24.09 | ||||
| 13 | WP89503 | Hose, Water Inlet (red Coupler) (Replaces: 8182792) |
|
Immediately | $ 24.09 | ||||
| 14 | WP8183009 | Cord, Power (Replaces: 8183009) |
|
$ 147.66 | |||||
| 15 | 8182635 | Strain Relief (Replaces: 8181690) |
|
$ 16.72 | |||||
| 16 | 8182607 | Brace, Rear |
|
- | |||||
| 17 | 8182701 | Clip, Drain Hose |
|
$ 81.73 | |||||
| 18 | WP8181737 | Hose, Drain (outer) (Replaces: 8181737) |
|
Immediately | $ 62.50 | ||||
| 19 | W11757170 | Connector, Drain Hose (Replaces: 8181738) |
|
Immediately | $ 6.39 | ||||
| 20 | WP3367052 | Clamp, Hose (Replaces: 8181752) |
|
$ 8.32 | |||||
| 21 | 8181632 | Brace, Top |
|
- | |||||
| 22 | WPW10367632 | Filter, Interference (Replaces: 8181683) |
|
$ 122.22 | |||||
| 23 | WPW10514214 | Switch, Pressure (Replaces: 8181695) |
|
Immediately | $ 146.04 | ||||
| 24 | WPW10004260 | Hose, Pressure Switch (Replaces: 8181739) |
|
Immediately | $ 7.00 | ||||
| 25 | 8181691 | Screw |
|
- | |||||
| 26 | WP8540268 | Cover, Transport (Replaces: 8182700) |
|
$ 6.95 | |||||
| 27 | WPW10280024 | Storage, Hose (Replaces: 8181768) |
|
$ 79.53 | |||||
| 28 | WP488729 | Screw (Replaces: 8181828) |
|
Immediately | $ 7.79 | ||||
| 29 | WPW10085220 | Microswitch (2) (Replaces: 8181930) |
|
$ 33.25 | |||||
| 30 | W11116978 | Grommet, Cord Support (2) (Replaces: 8182699) |
|
$ 22.80 | |||||
| 31 | 8182201 | Screw, 3 X 8 Mm |
|
$ 13.41 | |||||
| 32 | 8182702 | Clip, Outer Hose Holder |
|
$ 38.17 | |||||
| 33 | 8182639 | Sound Absorber, Toe Panel |
|
- | |||||
| 34 | 8182640 | Sound Absorber, Bottom |
|
- | |||||
| 35 | 8182775 | Sound Absorber, Top |
|
- | |||||
| 36 | 8182776 | Sound Absorber, Bottom Rear Panel |
|
- | |||||
| 37 | 8182777 | Sound Absorber, Rear Panel- Middle (2) |
|
- | |||||
| 38 | 8182109 | Harness Channel |
|
- | |||||
| 38 | 8182778 | Sound Absorber, Cabinet (2) |
|
- |
