01 - Top And Cabinet Parts

Diagram for 02 - Door And Latch Parts
02 - Door And Latch Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Dispenser Parts
04 - Dispenser Parts

Diagram for 05 - Tub And Basket Parts
05 - Tub And Basket Parts

Diagram for 06 - Pump And Motor Parts, Optional Parts (not Included)
06 - Pump And Motor Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8182626 Panel, Control (meteorite) Appelez-nous -
1 8182597 Panel, Control (white) Appelez-nous -
2 8182150 User Interface Special Order $ 278.39

3 8182177 Button, Power (meteorite) Appelez-nous -
3 8182601 Button, Power (white) Special Order $ 32.30

4 WP2004333 Pal-nut   (Replaces: 8182183) Special Order $ 11.24

5 8182178 Button Set, Left (meteorite) Appelez-nous -
5 8182604 Button Set, Left (white) Special Order $ 53.63

6 8182179 Button Set, Middle (meteorite) Appelez-nous -
6 8182603 Button Set, Middle (white) Appelez-nous -
7 8182602 Button Set, Right (white) Special Order $ 44.31

7 8182176 Button Set, Right (meteorite) Appelez-nous -
8 8182180 Button Set, Start Special Order $ 51.41

9 8182166 Light, Indicator (status) Appelez-nous -
10 8182170 Window, Display Appelez-nous -
11 8182168 Light, Indicator (3 Lights) Appelez-nous -
12 8182167 Light, Indicator (9 Lights) Appelez-nous -
13 8182224 Brace, Front Top Appelez-nous -
14 8182800 Channel, Water Appelez-nous -
15 8182774 Microcomputer, Machine Control Appelez-nous -
16 WP488729 Screw   (Replaces: 8181756) In-Stock Immediately $ 8.28

17 8182212 Harness, Wiring (main) Special Order $ 139.63

18 8182165 Light, Indicator (program) Appelez-nous -
19 8182169 Light, Indicator (8 Lights) Appelez-nous -
20 8182171 Bezel, Knob Appelez-nous -
21 8182181 Overlay, Door Appelez-nous -
22 8182182 Medallion Appelez-nous -
23 8182175 Knob, Control Appelez-nous -
24 8182599 Endcap, Left (white) Appelez-nous -
24 8182174 Endcap, Left (meteorite) Appelez-nous -
25 8182600 Endcap, Right (white) Appelez-nous -
25 8182164 Endcap, Right (meteorite) Appelez-nous -
26 8182172 Handle, Drawer (includes Illus. 24) (meteorite) Appelez-nous -
26 8182598 Handle, Drawer (includes Illus. 24) (white) Appelez-nous -

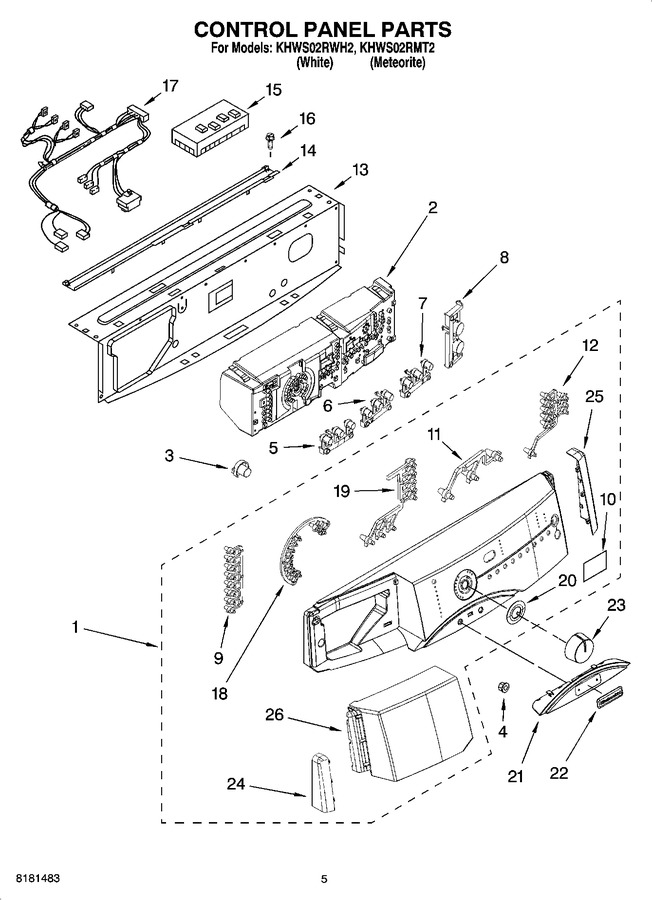

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KHWS02RMT2
