SELECT A DIAGRAM

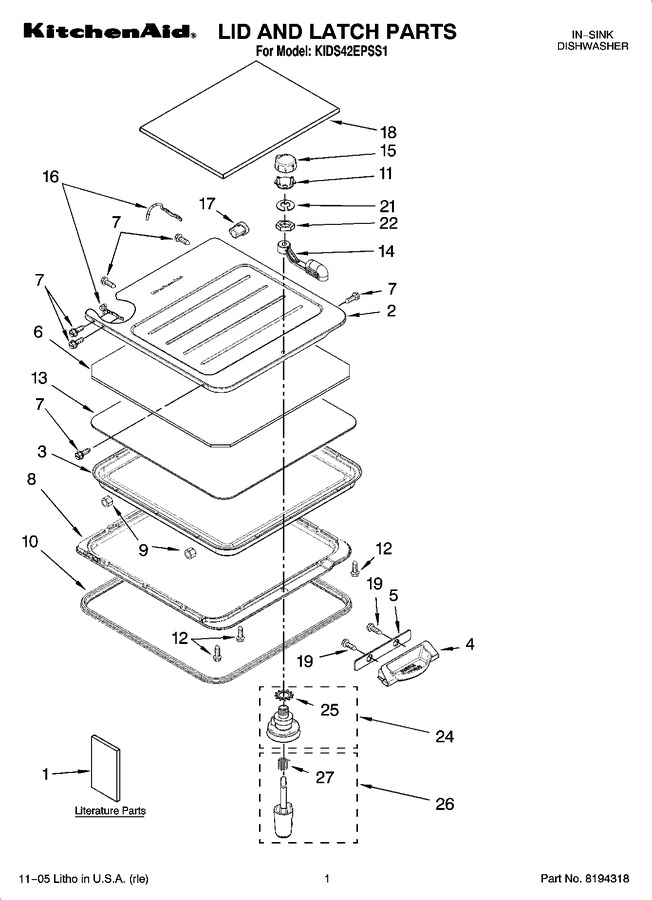

01 - Lid And Latch Parts


02 - Control Panel Parts


03 - Tub/sink Parts


04 - Air-gap And Dispenser Parts


05 - Pump And Motor Parts


06 - Sump And Strainer Parts


07 - Dishrack And Sprayarm Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8564766		Instructions, Installation		Appelez-nous	-
1	8572277		Energy Guide		Appelez-nous	-
1	8577494		Guide, Use & Care Tech Sheet		Appelez-nous	-
1	8571337		English/french		Appelez-nous	-
2	8564450		Lid, Outer		Appelez-nous	-
3	8564451		Lid, Inner		Appelez-nous	-
4	8564452		Cup, Detergent		Appelez-nous	-
5	8564453		Seal, Detergent Cup		Appelez-nous	-
6	8529459		Insulator, Sound Lid		Appelez-nous	-
7	WPW10119828		Screw   (Replaces: 355274)			Immediately	$ 7.55
8	8529340		Retainer, Gasket		Appelez-nous	-
9	3400629		Nut		Appelez-nous	-
10	8529381		Gasket, Lid		Appelez-nous	-
11	8564023		Plate, Mounting Knob		Appelez-nous	-
12	3400637		Screw		Appelez-nous	-
13	8529458		Mastic, Lid		Appelez-nous	-
14	8564024		Lever, Lid Locking		Appelez-nous	-
15	8565403		Knob, Latch (also Order Item 20)		Appelez-nous	-
16	8529383		Pin, Hinge (left Hand)		Appelez-nous	-
16	8529384		Pin, Hinge (right Hand)		Appelez-nous	-
17	8319539		Bearing, Lid Hinge				$ 5.51
18	8571336		Board, Cutting		Appelez-nous	-
19	W11631670		Screw   (Replaces: 8281217)				$ 14.72
21	3400940		E-ring		Appelez-nous	-
22	WP33001443		Nut, Hex   (Replaces: 3400522)				$ 8.76
24	8537007		Collar Assembly		Appelez-nous	-
25	3400941		Washer		Appelez-nous	-
26	8529395		Cam Assembly		Appelez-nous	-
27	8529390		Spring, Torsion		Appelez-nous	-
