Diagram for 07 - Dishrack And Sprayarm Parts, Optional Parts (not Included)
07 - Dishrack And Sprayarm Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8564459 Dishrack Appelez-nous -
2 8529352 Sprayarm Appelez-nous -
3 8564467 Basket, Silverware Appelez-nous -
5 8529337 Support, Arm Appelez-nous -
6 3400944 Washer Appelez-nous -
7 8529338 Cone, Centering Appelez-nous -
8 3400098 Screw Appelez-nous -
4396282 Booster, Hot Water Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

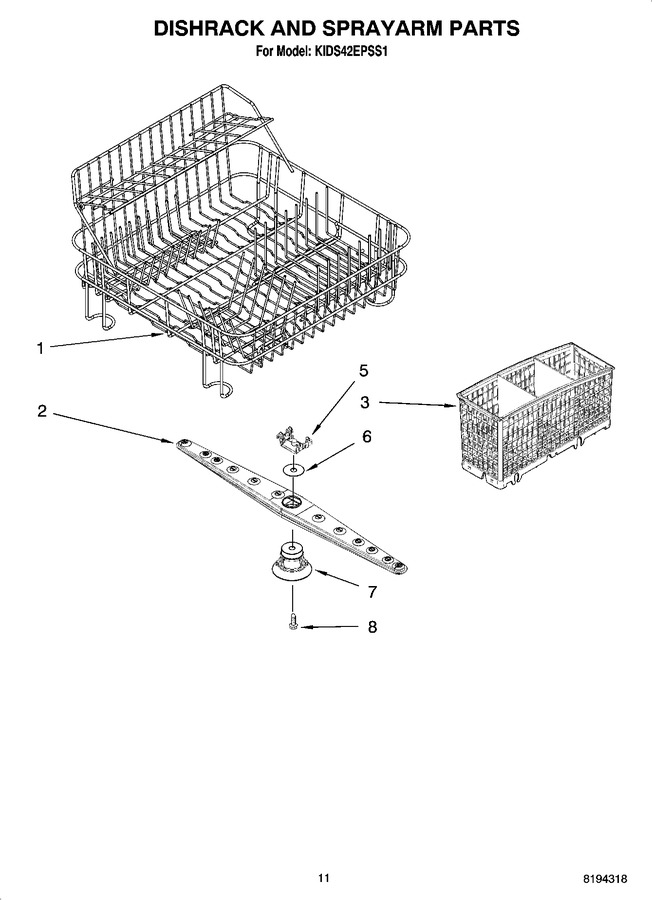

Diagram for KIDS42EPSS1
