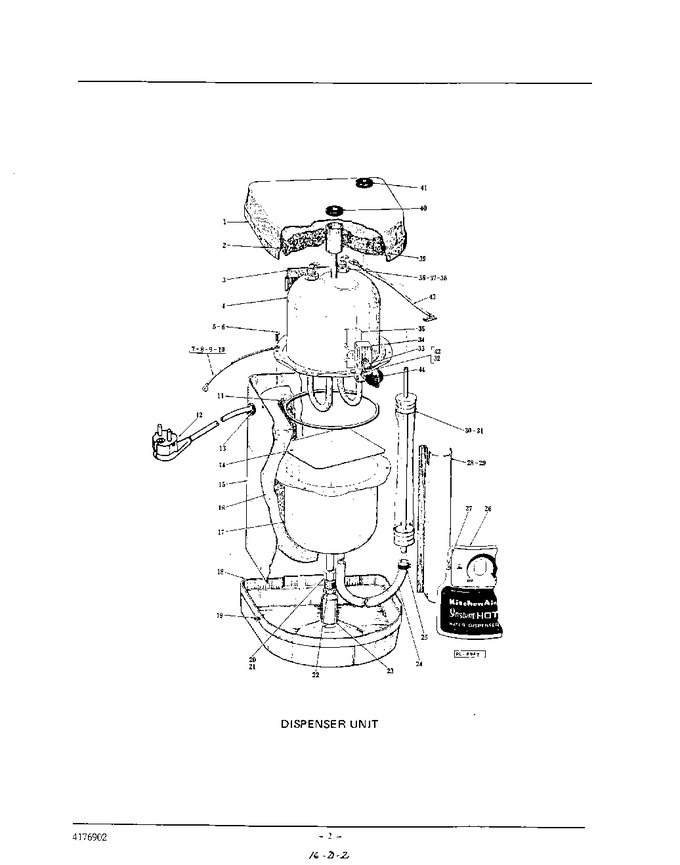

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D-241256-1		Cap - Top		Appelez-nous	-
2	B-240811		Insulation - Upper		Appelez-nous	-
3	B-241258		Bracket - Mounting		Appelez-nous	-
4	C-240798-2		Upper Tank & Tube Assy		Appelez-nous	-
5	SC-18-31		Mach. Screw 8-32 X 3/8 Phil. Pan Hd		Appelez-nous	-
6	NS-9-12		Mach. Nut - No.8-32 Hex		Appelez-nous	-
7	B-240834		Ground Wire Assy		Appelez-nous	-
8	SC-71-9		Mach. Screw - No.8-32 X 1/2`` Phil. Truss Hd		Appelez-nous	-
9	WL-7-7		Lock Washer - No.8 Ext. Shakeproof		Appelez-nous	-
10	NS-9-12		Mach. Nut - No.8-32 Hex		Appelez-nous	-
11	D-67500-96		``o`` Ring		Appelez-nous	-
12	241425		Model Kih160uk (cord Only)		Appelez-nous	-
12	241426		Model Kih160eur (cord & Plug)			Immediately	$ 6.64
13	FE-22-55		Strain Relief (model Kih160uk)		Appelez-nous	-
14	B-240802-1		Deflector		Appelez-nous	-
15	241443		Shell Cover Assy		Appelez-nous	-
16	B-240805		Insulation - Tank		Appelez-nous	-
17	C-240797		Lower Tank Assy		Appelez-nous	-
18	D-241257-1		Cap - Bottom		Appelez-nous	-
19	SA-21-19		Screw & L.w. Assy. - No.8 X 3/8`` Phil. Truss Hd		Appelez-nous	-
20	FP-47-20		Nut - Tube Fitting (3/8``)		Appelez-nous	-
21	FP-47-11		Sleeve - Tube Fitting (3/8``)		Appelez-nous	-
22	B-241260		Plug - Drain		Appelez-nous	-
23	B-240807		Spacer		Appelez-nous	-
24	B-240821		Hose - Clear		Appelez-nous	-
25	B-113156-4		Clamp - Tube (9/16`` Tube)		Appelez-nous	-
26	C-241472		Cover - Thermostat		Appelez-nous	-
27	SD-33-6		Self-tapping Screw - No.6-32 X 3/8`` Phil. Pan Hd., Type 23		Appelez-nous	-
28	C-241259		Cover - Aspirator		Appelez-nous	-
29	RS-32-11		Rivet - 1/8`` Dia. X 9/64`` Lg., Oval Hd		Appelez-nous	-
30	C-240815		Displacer Assy		Appelez-nous	-
31	B-240807		Spacer		Appelez-nous	-
32	NS-9-12		Mach. Nut - No.8-32 Hex		Appelez-nous	-
33	B-240814		Bushing - Thermostat		Appelez-nous	-
34	D-240812		Thermostat		Appelez-nous	-
35	B-240813		Dust Cover - Thermostat		Appelez-nous	-
36	241385-2		Heater Element (incls. Items No.37 & 38)		Appelez-nous	-
37	D-67500-100		``o`` Ring		Appelez-nous	-
38	M-79861		Nut - Heater Element		Appelez-nous	-
39	B-240807		Spacer		Appelez-nous	-
40	A-203693-2		Bushing - Water Outlet Tube		Appelez-nous	-
41	A-203693-3		Bushing - Water Inlet Tube		Appelez-nous	-
42	WL-7-7		Lock Washer - No.8 Ext. Shakeproof		Appelez-nous	-
43	B-241371		Thermal Fuse Assy		Appelez-nous	-
44	B-241283		Knob - Thermostat		Appelez-nous	-
	FE-17-41		Strain Relief (model Kih160eur)		Appelez-nous	-
