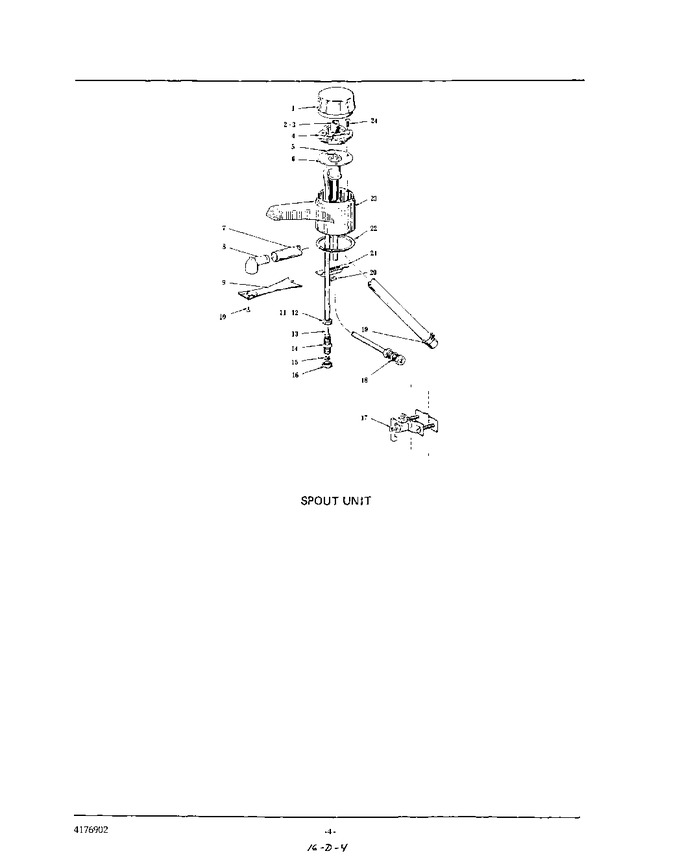

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C-114041-4		Cap Assy		Appelez-nous	-
2	D-241384		Hub - Valve Drive		Appelez-nous	-
3	B-242464		Spring - Compression		Appelez-nous	-
4	D-241383		Hub - Cam		Appelez-nous	-
5	SC-116-33		Cap Screw - 1/4``-20 X 5`` Rd. Hd		Appelez-nous	-
6	E-241689-1		Mechanical Valve Assy. (incls. Items No.13 & 14)		Appelez-nous	-
7	B-203694-10		Tube (3/8`` I.d.)		Appelez-nous	-
8	C-242479		Spout & Screen Assy		Appelez-nous	-
9	C-241684		Plate - Spout		Appelez-nous	-
10	SD-32-12		Self-tapping Screw - No.4-20 X 5/16`` Phil. Flat Hd. ``plastite``		Appelez-nous	-
11	FP-47-35		Nut - 1/4`` Compression Union		Appelez-nous	-
12	FP-47-34		Sleeve - 1/4`` Compression Union		Appelez-nous	-
13	B-240443		Screen - Inlet		Appelez-nous	-
14	FP-75-1		Union - Compression (1/4`` Tube To 1/4`` Tube) (incls. Items No.11, 12, 15 & 16)		Appelez-nous	-
15	FP-47-34		Sleeve - 1/4`` Compression Union		Appelez-nous	-
16	FP-47-35		Nut - 1/4`` Compression Union		Appelez-nous	-
17	C-113614		Self-drilling Valve Assy		Appelez-nous	-
18	FP-75-1		Union - Compression (1/4`` Tube To 1/4`` Tube) (incls. Items No.11, 12, 15 & 16)		Appelez-nous	-
19	B-113156-2		Clamp - Tube (3/8`` Tubing)		Appelez-nous	-
20	NS-8-7		Mach. Nut - 1/4``-20 Sq		Appelez-nous	-
21	D-240825		Bracket - Spout		Appelez-nous	-
22	B-241669		Seal - Sink		Appelez-nous	-
23	E-240823		Body - Spout		Appelez-nous	-
24	242456-4		Spout Unit Assy. (incls. Items No.1 Thru 16, 19 Thru 24)		Appelez-nous	-
24	SD-33-3		Self-tapping Screw - No.6-20 X 1/2`` Rd. Hd. Type Bt		Appelez-nous	-
24	241427		Kit - Tube & Bracket Assy. (incls. Items No.17, 18, 19, 22 & No.3 On Page 3)		Appelez-nous	-
