SELECT A DIAGRAM

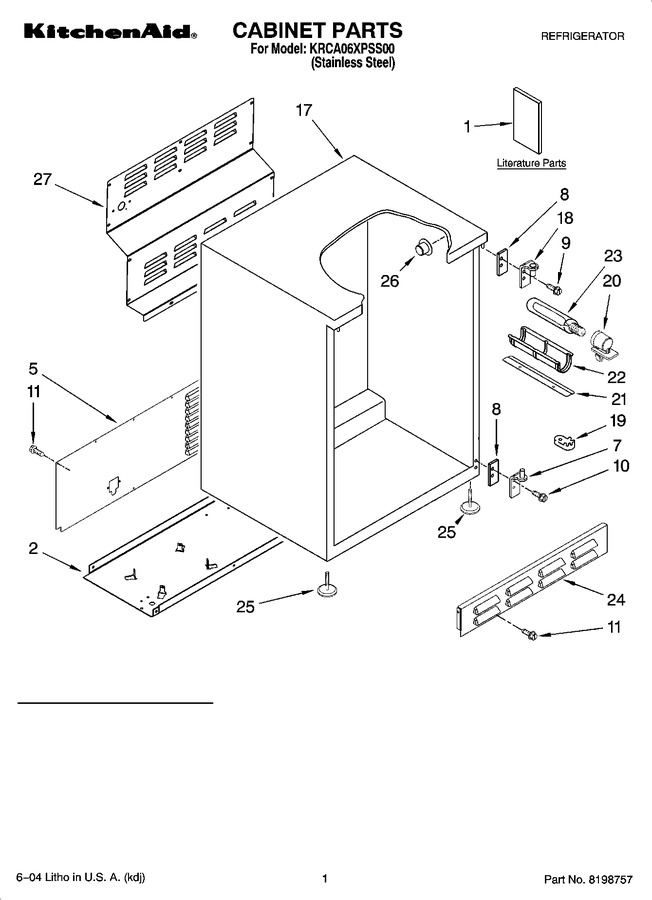

01 - Cabinet Parts


02 - Door And Shelf Parts


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2303754		Service & Wiring Sheet		Appelez-nous	-
1	2303696		Energy Guide		Appelez-nous	-
1	2303695		Use & Care Guide		Appelez-nous	-
2	2303613		Baseplate Assembly		Appelez-nous	-
5	2303610		Cover, Unit Compartment		Appelez-nous	-
7	2311016		Hinge Asm, Bottom   (Replaces: 2303658)		Appelez-nous	-
8	2303659		Shim		Appelez-nous	-
9	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
10	8534019		Screw		Appelez-nous	-
11	8533833		Screw		Appelez-nous	-
17	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
18	2303655		Hinge Asm, Top		Appelez-nous	-
19	WPW10329686		Closer, Door   (Replaces: 2155311)			Immediately	$ 5.90
20	WPW10191429		Light Socket   (Replaces: 2223857)				$ 8.80
21	2303626		Bracket, Light Cover		Appelez-nous	-
22	2303651		Cover, Light		Appelez-nous	-
23	WP548049		Light Bulb   (Replaces: 547225)				$ 90.67
24	2303608		Panel, Unit		Appelez-nous	-
25	2303615		Leveling Pad (4)		Appelez-nous	-
26	2303721		Knob, Thermostat		Appelez-nous	-
27	2303621		Panel, Evaporator		Appelez-nous	-
