SELECT A DIAGRAM
01 - Cabinet Parts

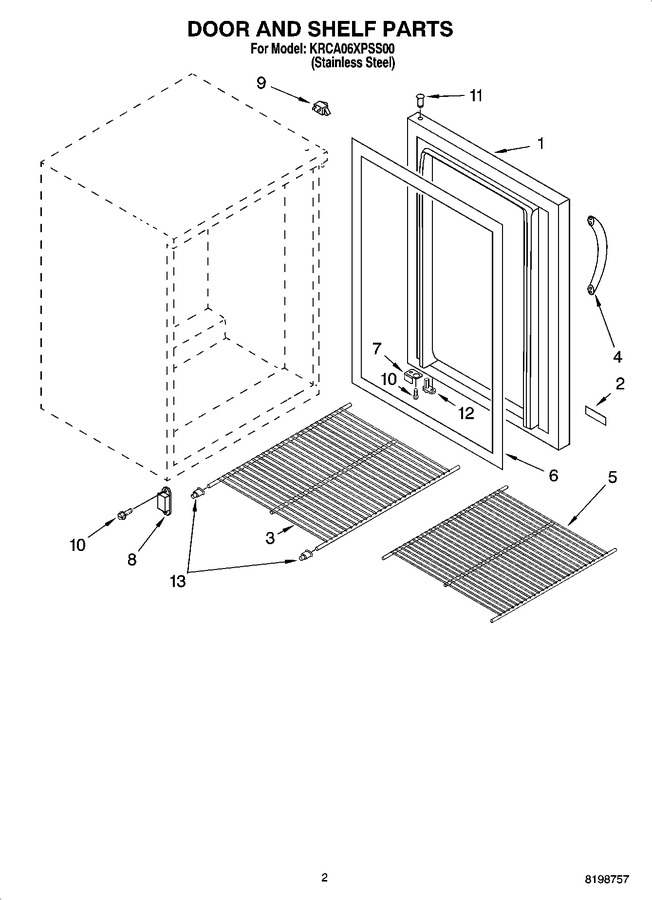

02 - Door And Shelf Parts
03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2303611 | Door Assembly (includes Gasket) |
|
- | |||||
| 2 | 2217214B | Nameplate |
|
- | |||||
| 3 | 2303628 | Shelf, Wire-short |
|
- | |||||
| 5 | 2303627 | Shelf, Wire-long |
|
- | |||||
| 6 | 2303676 | Gasket, Door |
|
- | |||||
| 7 | 2303752 | Bracket, Door Stop |
|
- | |||||
| 8 | 2303677 | Latch, Magnetic |
|
- | |||||
| 9 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 40.09 | |||||
| 10 | 8533833 | Screw |
|
- | |||||
| 11 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 13 | 8171420 | Cleaner, Stainless Steel (12 Oz.) |
|
- | |||||
| 13 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 13 | 4396337 | Caster Kit (4) |
|
- |
