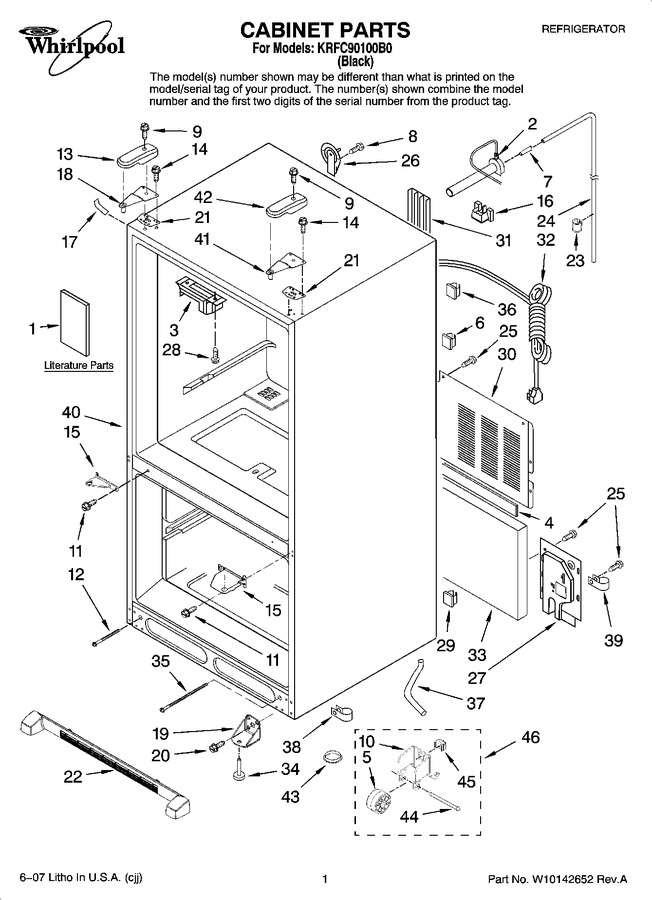

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10142705		Tech Sheet		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
3	WP67003405		Plate, Pivot   (Replaces: 67003405)			Immediately	$ 8.21
4	B5759649		Gasket		Appelez-nous	-
5	WP10450603		Roller   (Replaces: 67005127)				$ 8.27
6	M0104102		Clip, Cord				$ 8.10
7	WPA3223101		Insert, Fill Tube   (Replaces: A3223101)			Immediately	$ 8.21
8	WP98165		Screw   (Replaces: 67006287)				$ 8.57
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 53.10
11	W11573362		Screw   (Replaces: 67006380)				$ 14.72
12	71003131		Bolt, Adjusting (front)   (Replaces: 67006611)			Immediately	$ 7.08
13	W10217485		Cover, Left Hinge (black)   (Replaces: 67006726)				$ 22.72
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 8.43
15	12655103ED		Hinge, Center (black)   (Replaces: 67002027)				$ 89.26
16	67004092		Block, Filter		Appelez-nous	-
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
18	12626911ED		Hinge, Top Left   (Replaces: 12626908ED)				$ 89.05
19	12906303WD		Bracket, Foot (2)   (Replaces: 67007174)				$ 88.58
20	67006564		Screw			Immediately	$ 8.15
21	12695601		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille Assembly (includes Clips) (black)   (Replaces: 67006375)				$ 154.57
23	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
24	WPB5705307		Tube, Plastic   (Replaces: B5705331)				$ 13.05
25	67006425		Screw			Immediately	$ 7.30
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
27	67004735		Cover, Water Valve		Appelez-nous	-
28	W11233072		Screw   (Replaces: 67006626)			Immediately	$ 14.72
29	67002816		Clip, Waterline				$ 19.15
30	67002230		Back, Machine		Appelez-nous	-
31	67004102		Track, Waterline				$ 31.99
32	67006664		Cord, Power		Appelez-nous	-
33	67003796		Insulation, Sound				$ 19.27
34	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
35	67006697		Bolt, Adjusting (rear)				$ 12.88
36	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
37	67001066		Tube, Drain				$ 55.82
38	67001067		Clip, Drain Tube				$ 9.66
39	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
41	12626910ED		Hinge, Top Right   (Replaces: 12626907ED)				$ 124.87
42	12629801B		Cover, Right Hinge (black)				$ 25.13
43	A3076901		Plug, Button				$ 5.70
44	M1205302		Pin				$ 5.85
45	M0286708		Nut, Speed				$ 47.85
46	67006118		Roller Assembly		Appelez-nous	-
