SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts

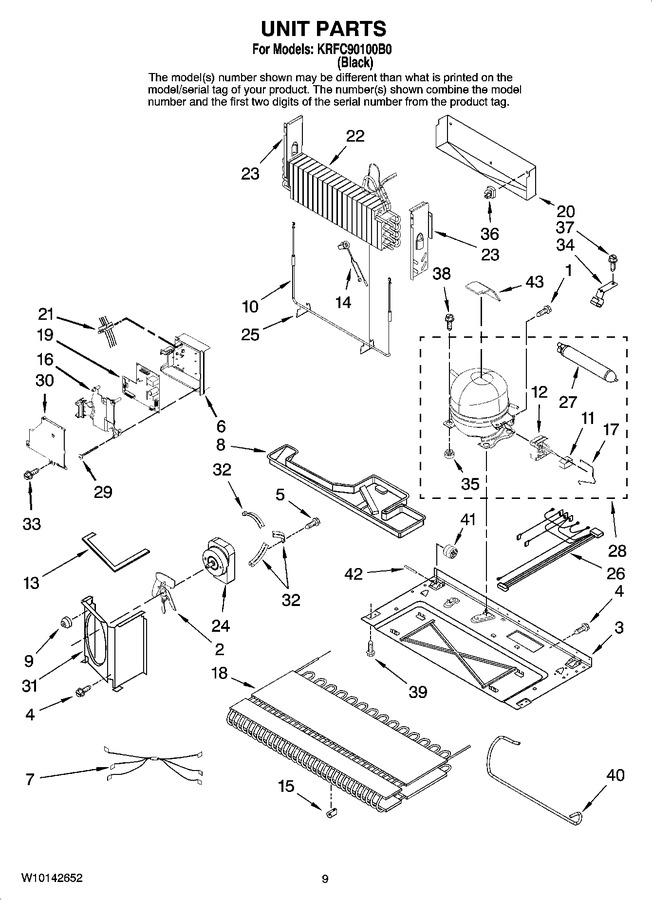

05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	WP12587601		Blade, Fan   (Replaces: 12587601)				$ 133.00
3	67005889		Base		Appelez-nous	-
4	67006425		Screw			Immediately	$ 7.30
5	W10143358		Screw		Appelez-nous	-
6	67005718		Box, Hv		Appelez-nous	-
7	13065901		Harness, Evap Heater		Appelez-nous	-
8	67007176		Pan, Drain		Appelez-nous	-
9	WP67006132		Grommet   (Replaces: 67004743)				$ 319.75
10	67002628		Evaporator Heater				$ 56.44
11	WP2201147		Capacitor   (Replaces: 67007162)				$ 135.42
12	67006660		Overload (includes Relay)		Appelez-nous	-
13	WP854334		Gasket   (Replaces: 61003832)				$ 13.94
14	67006658		Thermostat		Appelez-nous	-
15	67005680		Grommet (8)				$ 22.10
16	67005719		Spacer, Hv Box		Appelez-nous	-
17	67007052		Clip, Capacitor		Appelez-nous	-
18	WP67006131		Condenser   (Replaces: 67006131)				$ 385.08
19	12782027		Board, Hv Box		Appelez-nous	-
20	W11547653		Tray, Drip   (Replaces: 67002490)				$ 57.02
21	12972902		Harness, Hv Box				$ 80.90
22	12002041		Evaporator				$ 366.06
23	67001083		Dam (left Side)		Appelez-nous	-
23	67001084		Dam (right Side)		Appelez-nous	-
24	67005104		Motor, Fan		Appelez-nous	-
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	67002628		Harness, Heater				$ 56.44
27	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
28	W10309997		Compressor (includes Items 11, 12, 17, 27 & 35)   (Replaces: 8201733)				$ 583.93
29	67006550		Screw, Hv Box		Appelez-nous	-
30	67005421		Cover, Hv Box				$ 64.83
31	67006661		Shroud		Appelez-nous	-
32	67003354		Bracket, Fan Motor		Appelez-nous	-
33	67006615		Screw, Cover		Appelez-nous	-
34	10547003		Clip, Drier		Appelez-nous	-
35	4343845		Grommet (4)		Appelez-nous	-
36	10623002		Clip, Evaporator				$ 12.11
37	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
38	12846902		Screw   (Replaces: 67006432)				$ 13.64
39	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
40	WP12866903		Tube, Discharge   (Replaces: 67004700)			Immediately	$ 140.21
41	WP10450603		Roller (2)   (Replaces: 67005127)				$ 8.27
42	M1205302		Pin				$ 5.85
43	978028		Valve, Access (1/2)		Appelez-nous	-
43	978029		Valve Access (5/8``)				$ 93.85
43	978030		Valve, Access (3/4``)				$ 137.25
43	876764		Valve, Access(3/16``)			Immediately	$ 95.92
43	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
43	12820501		Pad, Acoustic		Appelez-nous	-
43	978026		Valve, Access (5/16``)			Immediately	$ 134.49
43	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
