Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12732428BQ Door, Left (black) Appelez-nous -
2 12732422BQ Door, Right (black) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WPW10371195 Bin, Medium (2)   (Replaces: 12849114) In-Stock Immediately $ 87.37

6 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W11368721 Gasket, Door (2) (black)   (Replaces: 12723206B) In-Stock Immediately $ 169.21

11 WP67002731 Bushing, Door (bottom Right)   (Replaces: 12028601B) In-Stock Immediately $ 8.24

12 WPW10289498 Bin, Gallon (2)   (Replaces: 12699210) Special Order $ 109.26

13 WP67002721 Bushing, Door (bottom Left)   (Replaces: 12699301B) In-Stock Immediately $ 8.25

14 12722811B Mullion, Door (black) Appelez-nous -
15 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

16 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 90.32

17 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

19 12395501B Bushing, Door (upper Left) (black) Appelez-nous -
20 67004978 Bushing, Door (upper Right) (black)   (Replaces: 10961006B) Special Order $ 22.10

21 W10136387A Bin, Egg   (Replaces: 2216624) Special Order $ 19.54


    View Diagram in Separate Window     Print Icon   Print Part List

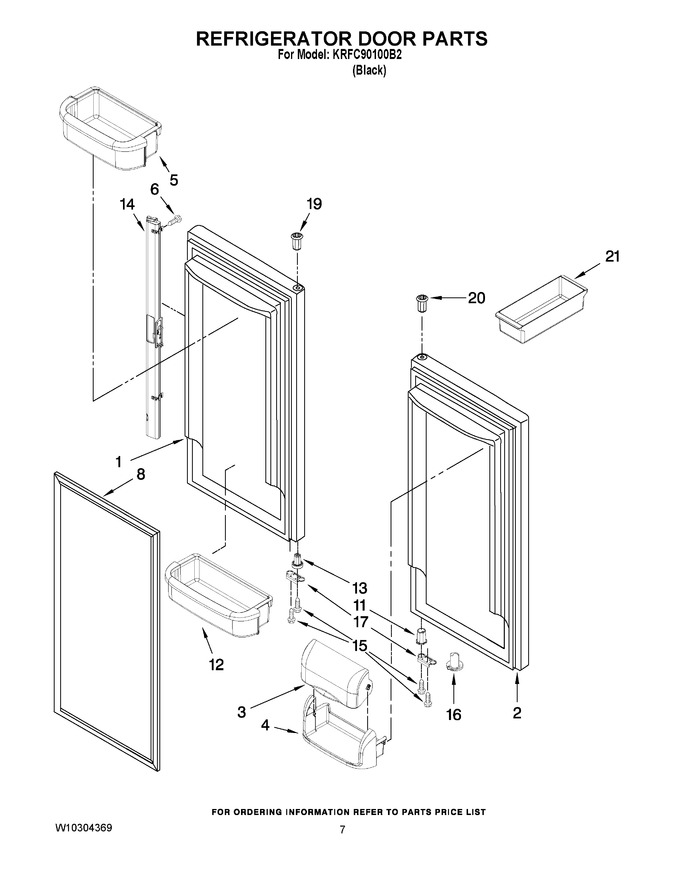

Diagram for KRFC90100B2
