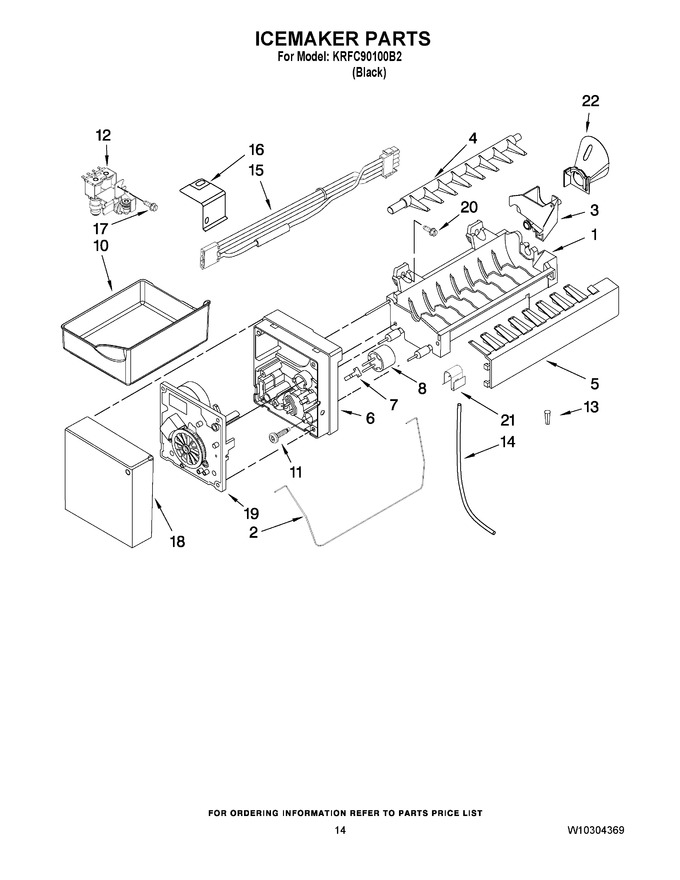

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10122523 | Mold & Heater Assembly (also Order 542638 Grease) |
|
- | |||||
| 2 | W11285509 | Arm-shut Off (Replaces: W10202524) |
|
$ 98.70 | |||||
| 3 | W10122561 | Cup, Fill (Replaces: 628515) |
|
$ 29.16 | |||||
| 4 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 5 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 6 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 109.80 | |||||
| 7 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 8 | WP2321258 | Thermostat (also Order 542369 Cement) (Replaces: 2321258) |
|
$ 103.93 | |||||
| 10 | WP67001255 | Pan, Ice (Replaces: 12695001) |
|
$ 213.23 | |||||
| 11 | W10001280 | Screw (2) |
|
- | |||||
| 12 | 12544125 | Valve, Water Inlet |
|
$ 104.49 | |||||
| 13 | WPA3223101 | Insert-tube (Replaces: A3223101SP) |
|
Immediately | $ 8.21 | ||||
| 14 | W11120581 | Tubing, Plastic (Replaces: B5705333SP) |
|
$ 124.93 | |||||
| 15 | 12975112 | Harness, Ice Maker |
|
- | |||||
| 16 | WP2256087 | Bracket, Ice Maker (Replaces: 2256087) |
|
$ 97.65 | |||||
| 17 | WP489128 | Screw (Replaces: 12991604) |
|
$ 11.40 | |||||
| 18 | WPW10289690 | Cover (Replaces: 12582501) |
|
Immediately | $ 8.82 | ||||
| 19 | W10122522 | Module Assembly |
|
- | |||||
| 20 | W10001240 | Screw (3) |
|
$ 9.22 | |||||
| 21 | WP628379 | Clip (Replaces: 628379) |
|
$ 11.10 | |||||
| 22 | 12918001 | Funnel-fill Tube |
|
Immediately | $ 13.03 | ||||
| 100 | WPW10190972 | Icemaker Assembly (Replaces: W10190972) |
|
$ 177.49 | |||||
| NI | 10244904 | Coupling |
|
$ 25.37 |
