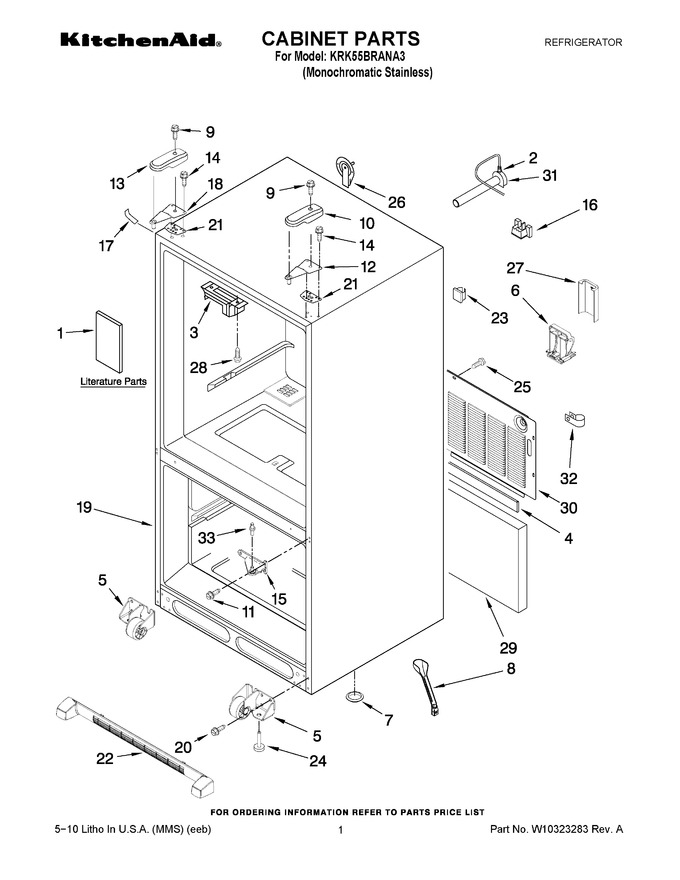

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10137643 | Use & Care Guide |
|
- | |||||
| 1 | W10308614 | Tech Sheet |
|
- | |||||
| 2 | WPM0114003 | Clip (Replaces: M0114003SP) |
|
$ 11.05 | |||||
| 3 | WP67003405 | Plate, Block (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | W11820444 | Roller Foot Assembly (lh) (Replaces: W10275850) |
|
Immediately | $ 35.57 | ||||
| 5 | W11820445 | Roller Foot Assembly (rh) (Replaces: W10275849) |
|
Immediately | $ 35.57 | ||||
| 6 | 12831101 | Sweep, Dual Tube |
|
$ 12.41 | |||||
| 7 | A3076901 | Plug, Bottom |
|
$ 5.70 | |||||
| 8 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 12629801B | Cover, Right Hinge (black) |
|
$ 25.13 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.02 | |||||
| 12 | 12626910ED | Hinge, Top Right |
|
$ 118.92 | |||||
| 13 | W10217485 | Cover, Left Hinge (black) |
|
$ 21.64 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | 12655103ED | Hinge, Center (black) |
|
$ 85.01 | |||||
| 16 | 12777701 | Block, Filter |
|
$ 7.17 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 18 | 12626911ED | Hinge, Top Left |
|
$ 84.81 | |||||
| 19 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | WPW10534153 | Grille Assembly (black) (Replaces: W10244561) |
|
$ 147.21 | |||||
| 23 | WPM0104106 | Clip, Tube (Replaces: M0104106) |
|
$ 7.78 | |||||
| 24 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 27 | W10208593 | Guard-water Valve |
|
$ 14.96 | |||||
| 28 | WP7101P126-60 | Screw (Replaces: 12990303) |
|
Immediately | $ 7.61 | ||||
| 29 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 198.09 | |||||
| 31 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 114.15 | ||||
| 32 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 33 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 |
