SELECT A DIAGRAM

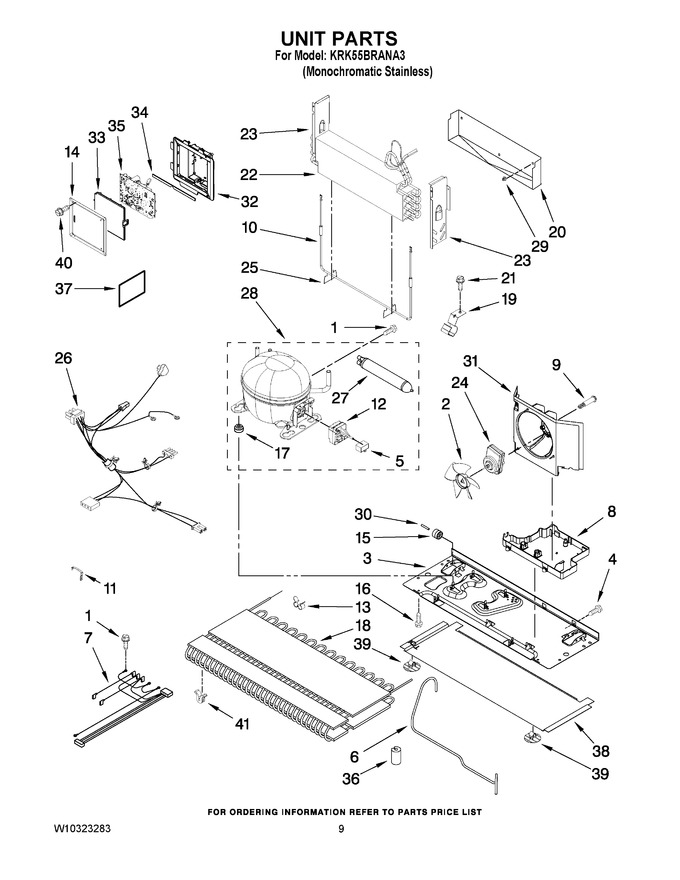

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10210985)				$ 105.29
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
5	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
6	WPW10217747		Tube, Discharge   (Replaces: W10217747)				$ 137.58
7	W10911102		Harness, Evap. Heater   (Replaces: W10292239)			Immediately	$ 98.34
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.03
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 12.65
10	W10825088		Heater, Defrost   (Replaces: 12729129)				$ 158.25
11	W10204187		Strap, Bale		Appelez-nous	-
12	WPW10197428		Start Device   (Replaces: W10197428)			Immediately	$ 89.21
13	W10196187		Clip, Condenser		Appelez-nous	-
14	12961602		Cover-control Box				$ 110.66
15	12477102		Roller			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet   (Replaces: 10835903SP)			Immediately	$ 7.19
18	WPW10346415		Condenser   (Replaces: W10135026)				$ 335.38
19	W10281329		Clip, Drier				$ 13.08
20	W11547653		Tray, Drip   (Replaces: W10292803)				$ 54.30
21	WP33001882		Screw   (Replaces: 12990701)				$ 79.72
22	12002041		Evaporator   (Replaces: 12726403)				$ 348.63
23	12225602		Dam (left Side)				$ 14.66
23	12225702		Dam (right Side)				$ 14.09
24	W11613295		Motor-cond   (Replaces: W10239053)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	W11224411		Harness, Unit (with Power Cord & Thermistor)   (Replaces: W10234025)				$ 140.02
27	W10273371		Drier		Appelez-nous	-
28	W10160407		Compressor (includes Items 11,12,17,27)   (Replaces: W10134623)				$ 599.92
29	10623002		Clip, Evaporator				$ 11.53
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.52
31	W11556315		Shroud   (Replaces: W10189184)				$ 79.66
32	W10257665		Box, Hv Control				$ 50.84
33	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 81.10
34	12957801		Gasket, Hv Box		Appelez-nous	-
35	WPW10317076		Board, Control (hv, Apollo)   (Replaces: W10317076)			Immediately	$ 393.18
36	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.70
37	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 14.07
38	W10206338		Extension-basepan		Appelez-nous	-
39	W10206339		Fastener, Basepan				$ 10.69
40	WP33001882		Screw   (Replaces: 12990701)				$ 79.72
41	WPW10137529		Grommet   (Replaces: W10137529)				$ 8.34
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.25 Ozs.(r-134a))		Appelez-nous	-
