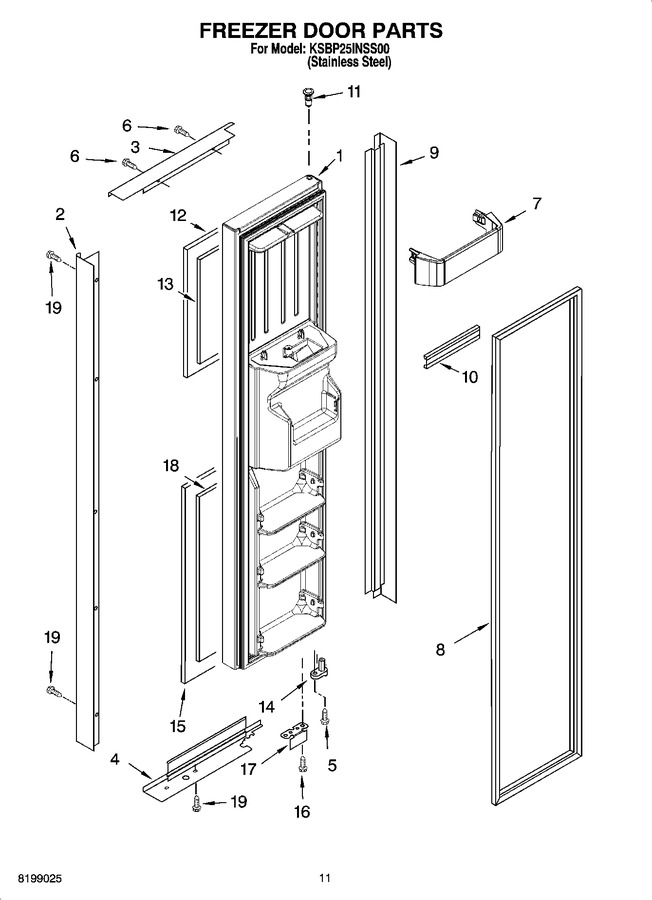

07 - Freezer Door Parts
08 - Dispenser Front Parts
09 - Air Flow Parts
10 - Control Parts
11 - Unit Parts
12 - Icemaker Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2223921B | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 2 | 2223817S | Handle (stainless Steel) |
|
- | |||||
| 3 | 2224095S | Trim, Door Top (stainless Steel) |
|
- | |||||
| 4 | 2223819S | Trim, Door Bottom (stainless Steel) |
|
- | |||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 6 | 3196180 | Screw |
|
- | |||||
| 7 | 2223559K | Shelf Bin (3) |
|
- | |||||
| 8 | 2306995 | Door Gasket, Magnetic (black) (Replaces: 2223910) |
|
$ 331.26 | |||||
| 9 | 2223820S | Trim, Hinge Side (stainless Steel) |
|
- | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 24.27 | ||||
| 11 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 12 | 2224150S | Panel, Upper Door (stainless Steel) |
|
$ 70.32 | |||||
| 13 | 2224160 | Board, Filler Upper |
|
- | |||||
| 14 | WP2223752 | Door Closer, Upper Cam (Replaces: 2223752) |
|
$ 21.16 | |||||
| 15 | 2224152S | Panel, Lower Door (stainless Steel) |
|
$ 150.51 | |||||
| 16 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 17 | 2306940B | Bracket, Door Stop (black) |
|
$ 38.97 | |||||
| 18 | 2224162 | Board, Filler Lower |
|
- | |||||
| 19 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 |
