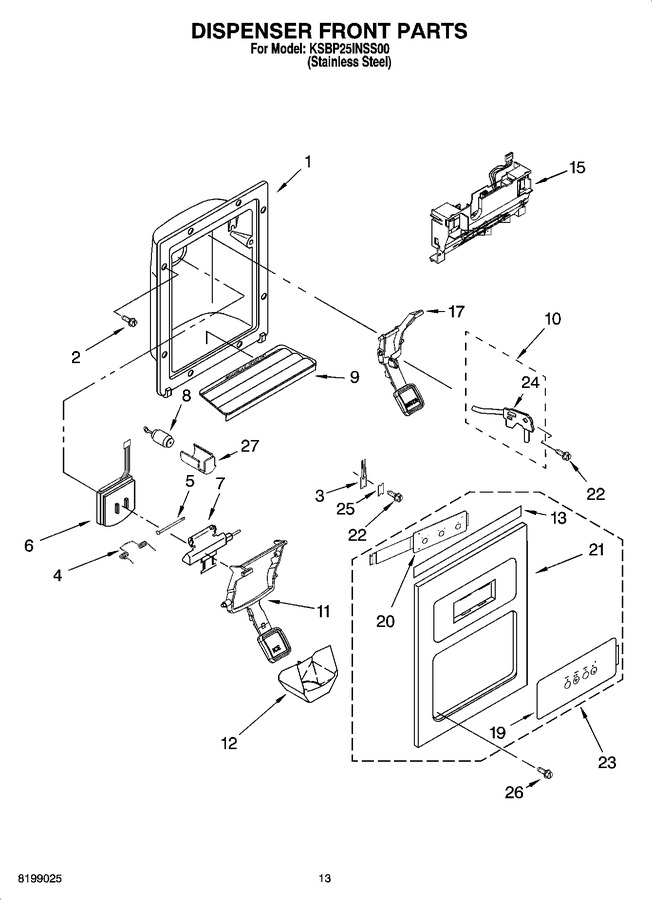

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 87.40 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 26.83 | ||||
| 7 | 2304355 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | WP2206670B | Grille, Overflow (black) (Replaces: 2206670B) |
|
Immediately | $ 35.52 | ||||
| 10 | 2221562 | Water Fitting Assembly (includes Water Tube) |
|
$ 55.47 | |||||
| 11 | 2259396SB | Lever, Ice Dispenser (black) |
|
- | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 13 | 2305571 | Gasket |
|
$ 27.44 | |||||
| 15 | 2306938 | Bracket, Control |
|
- | |||||
| 17 | 2259395SB | Lever, Water Dispenser (black) |
|
- | |||||
| 22 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 | |||||
| 23 | 2224063B | Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) |
|
$ 196.48 | |||||
| 24 | WP2304673 | Bracket, Dispenser (Replaces: 2188355) |
|
$ 16.38 | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 26 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 27 | 2252127 | Sleeve, Mechanism |
|
$ 22.00 |
