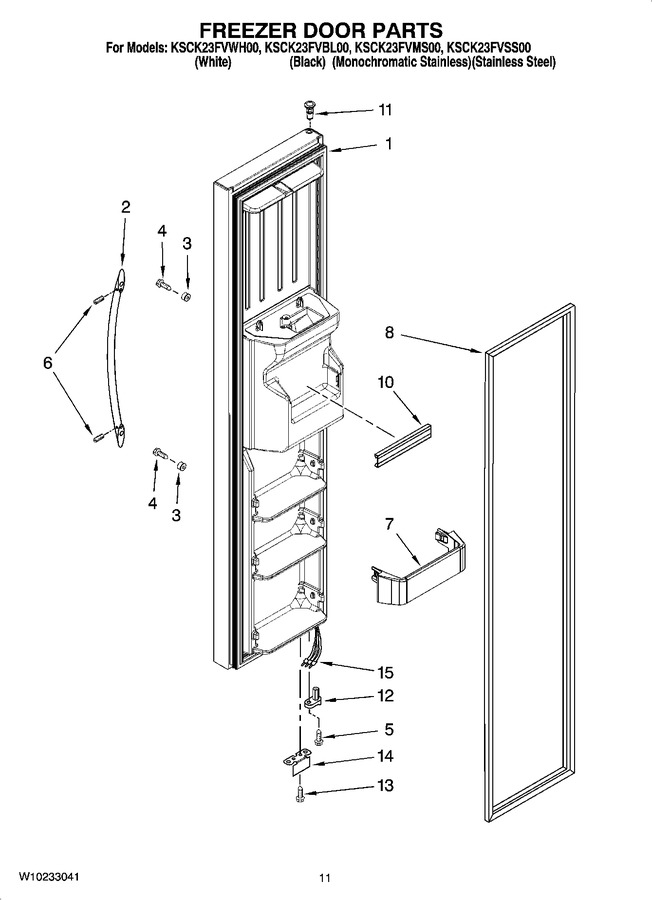

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10196037B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10196037SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10196037S		Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	W10196037W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2319727W		Handle (white)				$ 106.80
2	2319727B		Handle (black)				$ 109.87
2	2319727S		Handle (stainless Steel)				$ 133.96
3	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
4	WP488163		Screw   (Replaces: 488208)				$ 7.54
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WPW10010150		Screw (black)   (Replaces: W10010150)				$ 7.88
6	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
7	2223559K		Shelf Bin (3)		Appelez-nous	-
8	2326342		Door Gasket, Magnetic (apollo Grey)		Appelez-nous	-
8	2223912		Door Gasket, Magnetic (black)		Appelez-nous	-
8	2223850		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
12	W10132977		Door Closer, Upper Cam				$ 12.16
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2306940		Bracket, Door Stop (chrome)				$ 97.08
14	2306940B		Bracket, Door Stop (black)				$ 37.11
15	W10193334		Wire Assy, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
