SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts

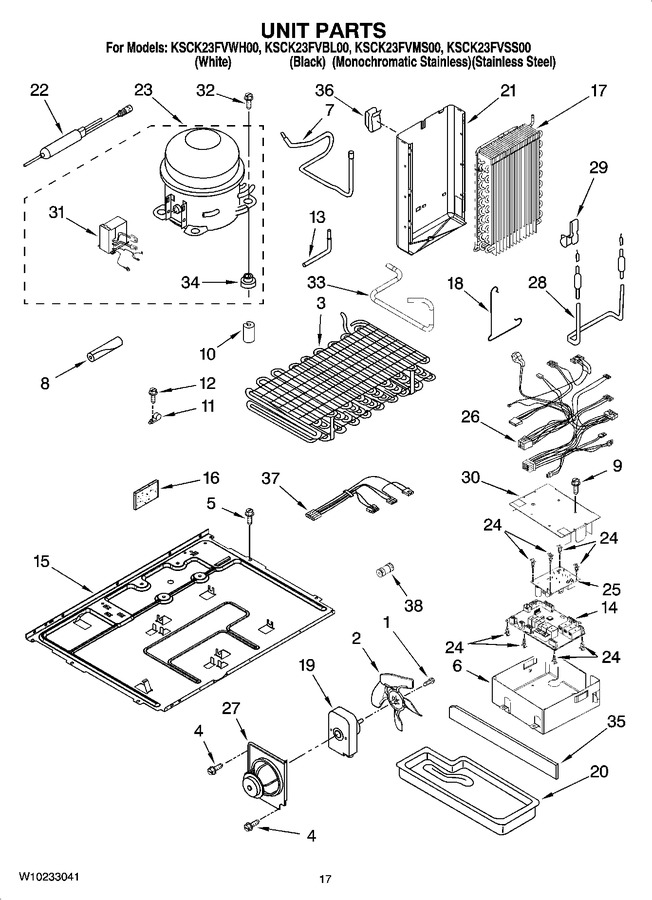

11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488234		Screw   (Replaces: 777070)				$ 6.74
2	WPW10139483		Fan, Blade   (Replaces: W10139483)				$ 95.07
3	W10131059		Condenser Assembly		Appelez-nous	-
4	WP489399		Screw   (Replaces: W10142231)				$ 6.95
5	3400524		Screw (6)				$ 12.65
6	2224844		Housing, Control Board		Appelez-nous	-
7	W10528579		Tube Suction   (Replaces: 2223351)				$ 262.20
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP488234		Screw, Ctrl (2)   (Replaces: 3400803)				$ 6.74
10	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 7.70
11	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
11	W11456069		Clamp, Cable   (Replaces: 2185788)			Immediately	$ 21.33
12	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
13	2325479		Tube, Process		Appelez-nous	-
14	WPW10209635		Ctrl-elek, Main   (Replaces: W10209635)				$ 334.87
15	2306932		Baseplate				$ 158.02
16	W11553819		Insulation, Sound   (Replaces: 2169104)			Immediately	$ 14.07
17	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
18	2161324		Clamp		Appelez-nous	-
19	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
20	2223398		Tray, Evaporator		Appelez-nous	-
21	2224022		Heat Shield		Appelez-nous	-
22	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
23	8201675		Compressor   (Replaces: W10186723)			Immediately	$ 538.32
24	2223800		Spacer (5)				$ 17.50
25	W10212585		Ctrl-elek, Gemini		Appelez-nous	-
26	W10129751		Harness, Main Control				$ 170.68
27	2224024		Fan, Motor Bracket				$ 56.36
28	2323199		Heater, Defrost				$ 127.42
29	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
30	W10180645		Cover, Housing		Appelez-nous	-
31	W10893917		Inverter Box   (Replaces: W10186719)			Immediately	$ 448.37
32	876811		Screw   (Replaces: 489373)				$ 7.42
33	W10181542		Tube, Discharge		Appelez-nous	-
34	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
34	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
35	2223394		Extension, Air Baffle		Appelez-nous	-
36	2155547		Clip, Heat Shield		Appelez-nous	-
37	2187737		Unit Harness				$ 156.99
38	WPW10334458		Connector, Water Tube   (Replaces: 2320322)				$ 21.59
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	SF5516		Valve, Access (5/16``)   (Replaces: 978026)			Immediately	$ 18.94
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
