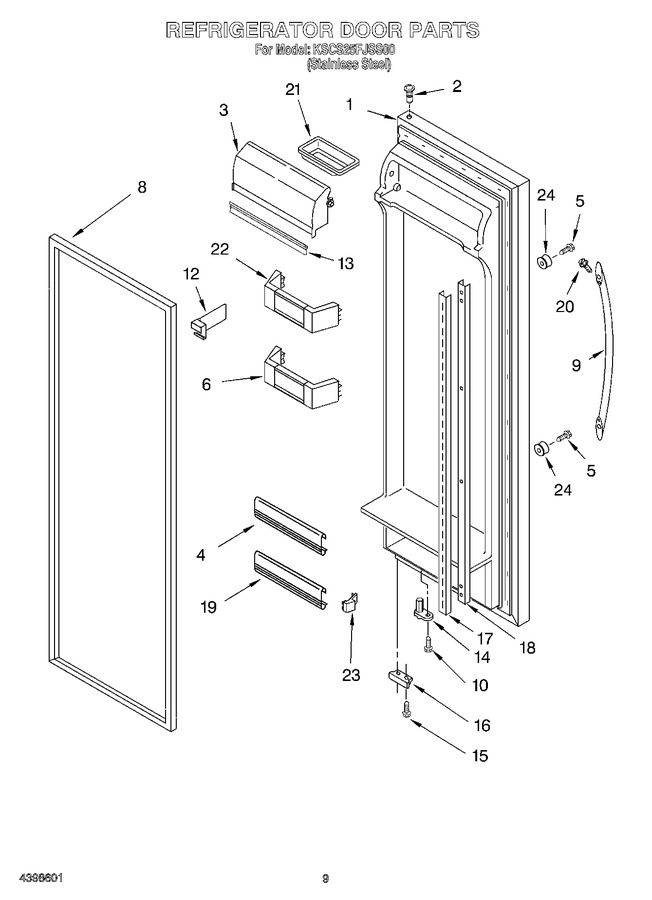

06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2209549S		Refrigerator Door (includes No.7) (stainless Steel)		Appelez-nous	-
2	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
3	2182399		Door, Compartment		Appelez-nous	-
4	2182190		Trim, Door Shelf		Appelez-nous	-
5	WP489463		Screw   (Replaces: 489463)				$ 7.82
6	2199986		Bin, Door		Appelez-nous	-
8	2209515		Door Gasket, Magnetic (service) (black)				$ 226.26
9	2204454		Handle (includes Item 20)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
12	2195497		Divider, Bin		Appelez-nous	-
13	2159124		Gasket		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2195952		Bracket, Door Stop		Appelez-nous	-
17	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
18	1113949		Ladder, Shelf (2)		Appelez-nous	-
19	2203087		Trim, Door Shelf				$ 42.91
20	98654		Set Screw		Appelez-nous	-
21	2165792		Butter, Dish		Appelez-nous	-
22	2199983		Bin, Door (3)		Appelez-nous	-
23	WP2195916K		Endcap (2)   (Replaces: 2195916)			Immediately	$ 12.55
24	2203690		Stud, Handle		Appelez-nous	-
