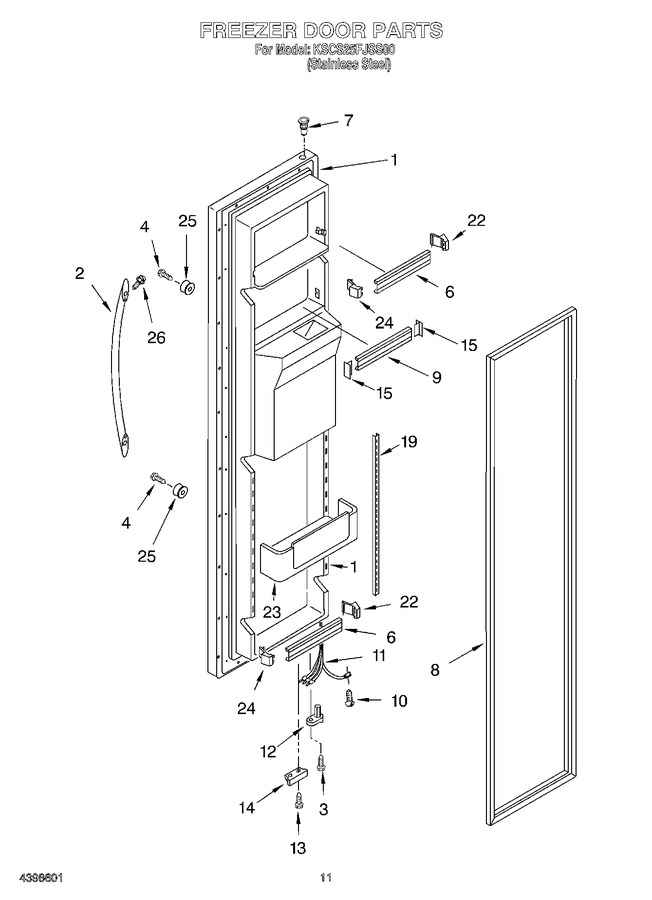

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2209552S		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2204454		Handle (includes Item 20)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	2199990		Trim, Door Shelf		Appelez-nous	-
7	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
8	2209514		Door Gasket, Magnetic (service) (black)		Appelez-nous	-
9	2199991		Trim, Door Shelf		Appelez-nous	-
10	3369138		Screw				$ 5.81
11	2203170		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2195952		Bracket, Door Stop		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
19	2208147		Ladder, Shelf Assembly (2)		Appelez-nous	-
22	WP2195916K		Endcap   (Replaces: 2195916)			Immediately	$ 12.55
23	2199992		Bin, Door (2)		Appelez-nous	-
24	2195917		Endcap		Appelez-nous	-
25	2203690		Stud, Handle		Appelez-nous	-
26	98654		Set Screw		Appelez-nous	-
