SELECT A DIAGRAM

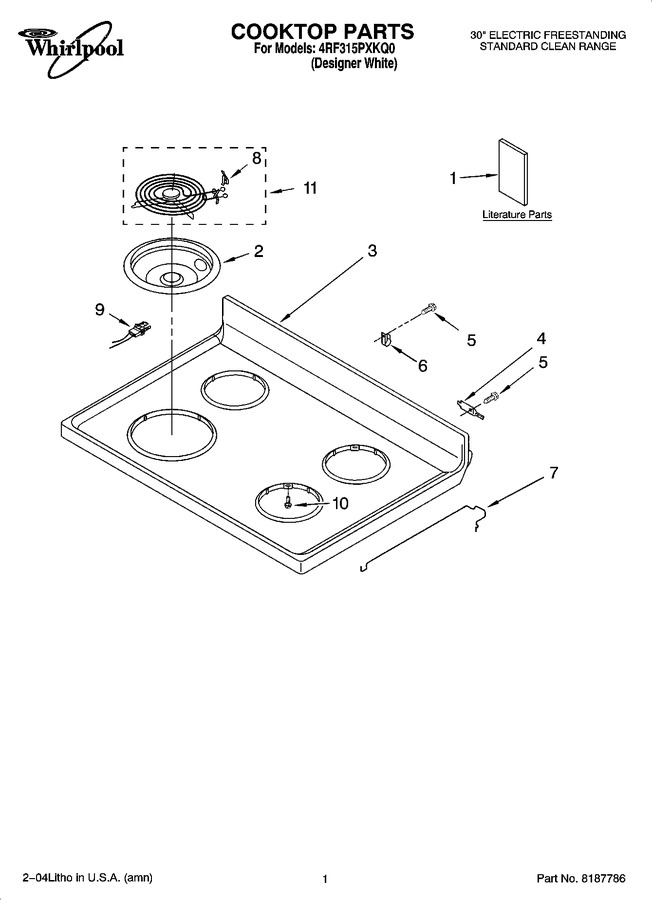

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8522769 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8523325 | Literature Parts (saudi) |
|
- | |||||
| 1 | LIT8053290 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8053714 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (spanish) |
|
- | |||||
| 1 | LIT9756849 | Literature Parts (french) |
|
- | |||||
| 1 | LIT8054039 | Literature Parts (saudi) |
|
- | |||||
| 1 | LIT8054038 | Literature Parts (saudi) |
|
- | |||||
| 1 | LIT4454078 | Literature Parts (safer Cooking Tips) |
|
- | |||||
| 2 | W10196405RW | Bowl, Drip (8`` Chrome (2)) (Replaces: 3195209) |
|
Immediately | $ 21.82 | ||||
| 2 | WPW10196406 | Bowl, Drip (6`` Chrome (2)) (Replaces: 3195208) |
|
Immediately | $ 13.39 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 4 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 11.76 | |||||
| 7 | WP3195812 | Rod, Support (2) (Replaces: 3195812) |
|
Immediately | $ 8.73 | ||||
| 8 | WP3195917 | Clip, Spring (Replaces: 3195917) |
|
Immediately | $ 8.12 | ||||
| 9 | 814399 | Receptacle, Elmnt. |
|
Immediately | $ 43.19 | ||||
| 10 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 11 | WPW10259865 | Element, Surface (8`` (2)) (Replaces: 8053268) |
|
Immediately | $ 117.69 | ||||
| 11 | WP660532 | Element, Surface (6`` (2)) (Replaces: 8053266) |
|
Immediately | $ 41.00 |
