01 - Cooktop Parts
02 - Control Panel Parts

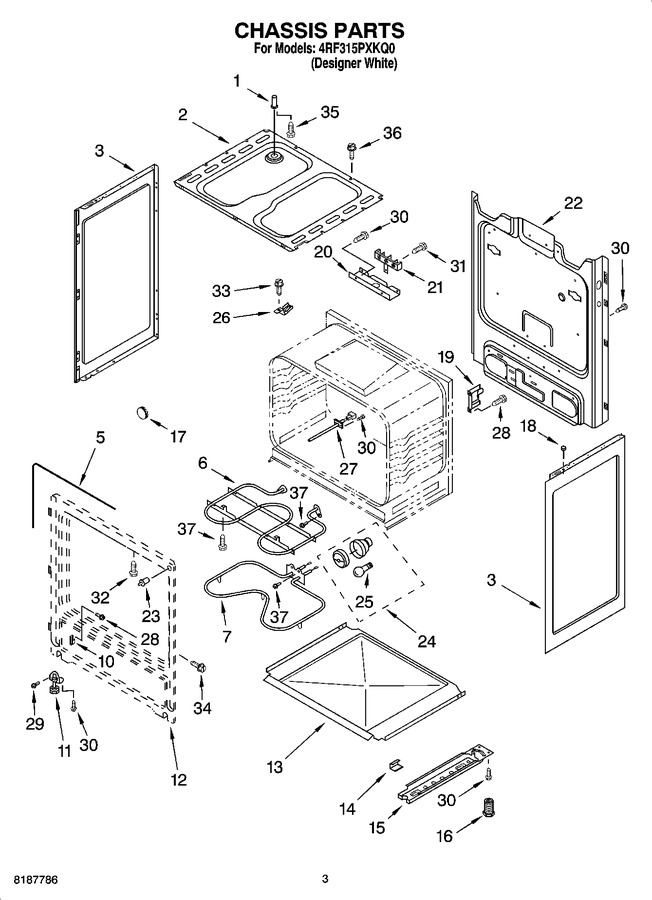

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222268 | Vent Tube (Replaces: 3169143) |
|
$ 104.30 | |||||
| 2 | W11699791 | Box, Burner (Replaces: 3186144) |
|
$ 262.30 | |||||
| 3 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 148.71 | |||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 3186152) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 8053712) |
|
Immediately | $ 154.62 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: 9758519) |
|
Immediately | $ 71.86 | ||||
| 10 | WP3195546 | Glide, Drawer Front (Replaces: 3195546) |
|
Immediately | $ 8.33 | ||||
| 11 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 87.12 | |||||
| 13 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 14 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 15 | W11818353 | Rail, Base (2) (Replaces: 8053335) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: 312701) |
|
Immediately | $ 8.24 | ||||
| 17 | 3196439 | Plug-button |
|
- | |||||
| 18 | 238614 | Bumper, Side (2) (Replaces: 3195809) |
|
$ 84.79 | |||||
| 19 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 17.69 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 8.63 | |||||
| 21 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 30.13 | ||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 23 | 310345 | Switch, Door |
|
$ 94.86 | |||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 26 | 3169573 | Strap, Ground |
|
- | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: 8273902) |
|
Immediately | $ 106.83 | ||||
| 28 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 29 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 18.60 | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 32 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 33 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 34 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 8.24 | |||||
| 35 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 8.06 | |||||
| 36 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 37 | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 115.11 | |||||
| 37 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 37 | N/A | Insulation |
|
- | |||||
| 37 | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 55.47 |
