View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

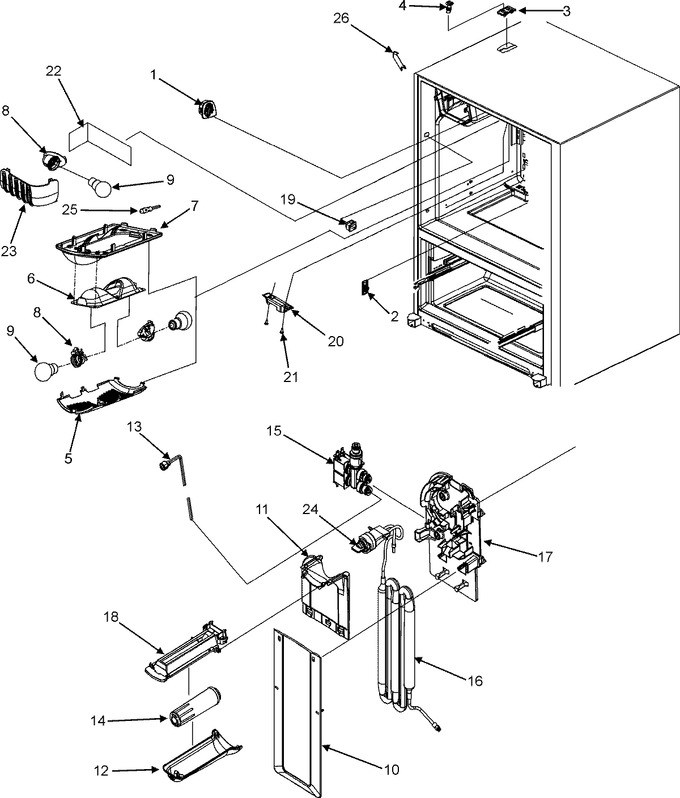

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10555984 | Grille, Ref. Air (Replaces: 67006316) | 10 |
|
Immediately | $ 40.09 | |||
| 2 | 12987301 | Cover, Chiller Vent (Replaces: 67006319) | 10 |
|
$ 13.08 | ||||
| 3 | 12981401W | Cover, Fill Tube (wht) (Replaces: 67006321) | 10 |
|
$ 12.62 | ||||
| 4 | W11415785 | Tube W/waterline, Fill-im (Replaces: 67006317) | 10 |
|
Immediately | $ 62.39 | |||
| 5 | 67006318 | Cover, Ref. Light | 10 |
|
$ 28.75 | ||||
| 6 | 12806601 | Housing, Light (Replaces: 67003901) | 10 |
|
$ 104.95 | ||||
| 7 | 67006328 | Module, Ref. Light | 10 |
|
- | ||||
| 8 | W11447232 | Socket, Light (Replaces: Y12570701) | 10 |
|
Immediately | $ 13.21 | |||
| 9 | W11679940 | Bulb, Light X (Replaces: 67003883) | 10 |
|
Immediately | $ 11.30 | |||
| 10 | 67006329 | Cover, Water Tank (lwr) | 10 |
|
$ 189.48 | ||||
| 11 | 12960101 | Cover, Water Tank (upr) (Replaces: 67006330) | 10 |
|
$ 127.63 | ||||
| 12 | WP67006331 | Lid, Water Filter (Replaces: 67006331) | 10 |
|
Immediately | $ 112.73 | |||
| 13 | 67006970 | Waterline-cabinet W/nut | 10 |
|
$ 27.96 | ||||
| 14 | EDR4RXD1B | Filter, Water Puriclean Ii (Replaces: 67006467) | 10 |
|
Immediately | $ 49.99 | |||
| 15 | 67006322 | Valve, Dual Water | 10 |
|
Immediately | $ 164.71 | |||
| 16 | WP12956202 | Water Tank/head Assy. (Replaces: 67006323) | 10 |
|
Immediately | $ 225.07 | |||
| 17 | 67006324 | Bracket, Water Tank & Valve | 10 |
|
$ 25.27 | ||||
| 18 | 67006325 | Bracket, Filter Base | 10 |
|
Immediately | $ 100.37 | |||
| 19 | W11396033 | Switch, Light (Replaces: 12466103) | 10 |
|
Immediately | $ 37.30 | |||
| 20 | WP67003405 | Block, Pivot (Replaces: 67003405) | 10 |
|
Immediately | $ 7.82 | |||
| 21 | W11233072 | Screw (Replaces: 67006626) | 10 |
|
Immediately | $ 14.02 | |||
| 22 | 67006326 | Foil, Light | 10 |
|
- | ||||
| 23 | 12921801 | Cover, Light (Replaces: 67006327) | 10 |
|
$ 21.56 | ||||
| 24 | W11395888 | Plug, Bypass (Replaces: 12664501) | 10 |
|
Immediately | $ 50.72 | |||
| 25 | 12002355 | Thermistor Kit | 10 |
|
Immediately | $ 47.36 | |||
| 26 | 67003486 | Cover, Corner (bsq) | 10 |
|
- |
