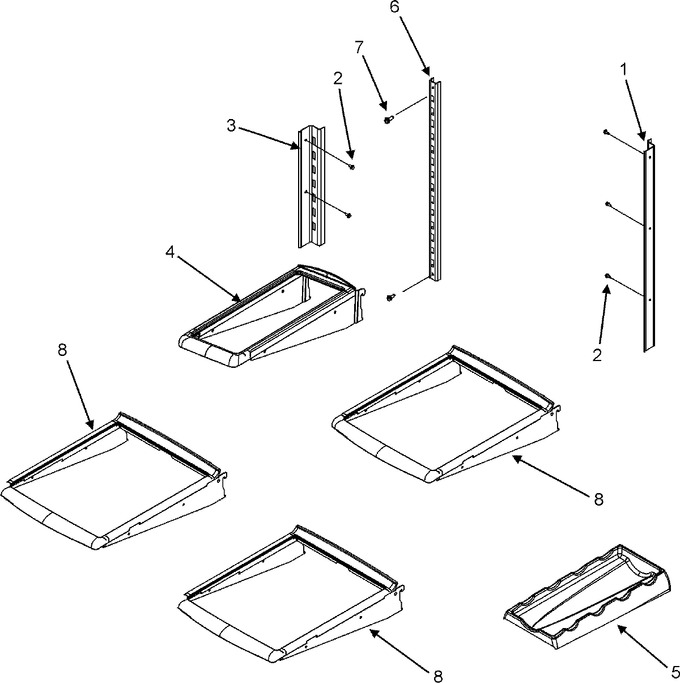

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67007115		Ladder, Side (rt)	10	Appelez-nous	-
2	67006425		Screw, Sm   (Replaces: 67006400)	10		Immediately	$ 7.30
3	67006354		Ladder, Side (lt)	10	Appelez-nous	-
4	67006977		Shelf, Stat Mini	10	Appelez-nous	-
5	67001656		Trivet, Bottle	10			$ 72.49
6	67006358		Ladder, Center	10	Appelez-nous	-
7	W10709795		Screw   (Replaces: 67006360)	10			$ 13.79
8	67006969		Shelf, Glide Out	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
