| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11702858 |
 |
Housing, Light (Replaces: 67001035) |
10 |
|
|
$ 85.82 |
|
|
| 2 |
W11447232 |
 |
Socket, Light (Replaces: Y12570701) |
10 |
|
Immediately |
$ 13.21 |
|
|
| 3 |
W11679940 |
|
Bulb, Light X (Replaces: 67003883) |
10 |
|
Immediately |
$ 11.30 |
|
|
| 4 |
W11445850 |
 |
Switch, Rocker (Replaces: 67006422) |
10 |
|
Immediately |
$ 50.11 |
|
|
| 5 |
67006423 |
|
Module, Freezer Light |
10 |
|
|
$ 54.86 |
|
|
| 6 |
WP67006337 |
 |
Blade, Fan (Replaces: 67006337) |
10 |
|
Immediately |
$ 90.45 |
|
|
| 7 |
W11700329 |
|
Shroud, Evaporator Fan (Replaces: 67006424) |
10 |
|
Immediately |
$ 58.29 |
|
|
| 8 |
W11676465 |
|
Grommet, Fan Motor (Replaces: 67006339) |
10 |
|
Immediately |
$ 14.82 |
|
|
| 9 |
67006968 |
|
Motor, Fan |
10 |
|
|
$ 153.23 |
|
|
| 10 |
W11712696 |
|
Clip, Fan Motor (Replaces: 67006338) |
10 |
|
Immediately |
$ 11.66 |
|
|
| 11 |
67006383 |
|
Cover, Evap |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
W11176847 |
|
Grille, Frz. Air (Replaces: 67006382) |
10 |
|
|
$ 118.25 |
|
|
| 13 |
WP67003924 |
 |
Cover, Fz Thermistor (Replaces: 67003924) |
10 |
|
|
$ 7.82 |
|
|
| 14 |
12002730 |
 |
Evaporator Kit |
10 |
|
|
$ 363.64 |
|
|
| 15 |
67006384 |
|
Dam, Left Return |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
67006385 |
|
Dam, Right Return |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
67006386 |
|
Heater, Defrost |
10 |
|
|
$ 62.99 |
|
|
| 18 |
W11673433 |
|
Clip, Evap Heater (Replaces: 10428101) |
10 |
|
|
$ 141.12 |
|
|
| 19 |
W11451451 |
 |
Gasket, Foam (Replaces: 67003731) |
10 |
|
|
$ 12.41 |
|
|
| 20 |
W11547653 |
 |
Tray, Drip E-ct (Replaces: 67002490) |
10 |
|
|
$ 54.30 |
|
|
| 21 |
10623002 |
|
Clip, Evaporator |
10 |
|
|
$ 12.11 |
|
|
| 22 |
W10815413 |
 |
Funnel, Drain (Replaces: D7753903) |
10 |
|
Immediately |
$ 49.05 |
|
|
| 23 |
WPM0500703 |
 |
Seal, O Ring (Replaces: M0500703) |
10 |
|
|
$ 10.92 |
|
|
| 24 |
WPB8381501 |
 |
Gasket, Drain Tube (Replaces: B8381501) |
10 |
|
|
$ 7.41 |
|
|
| 25 |
67006425 |
 |
Screw, Sm |
10 |
|
Immediately |
$ 7.30 |
|
|
| 26 |
WP98165 |
 |
Screw, Sm (Replaces: 67006287) |
10 |
|
|
$ 8.00 |
|
|
| 27 |
WP67006387 |
 |
Thermostat, Defrost (Replaces: 67006387) |
10 |
|
Immediately |
$ 117.68 |
|
|
| 28 |
12002355 |
 |
Thermistor Kit (Replaces: 12002356) |
10 |
|
Immediately |
$ 47.36 |
|
|
| 29 |
67006388 |
|
Harness, Evap/heater |
10 |
Appelez-nous
|
- |
|
|
|

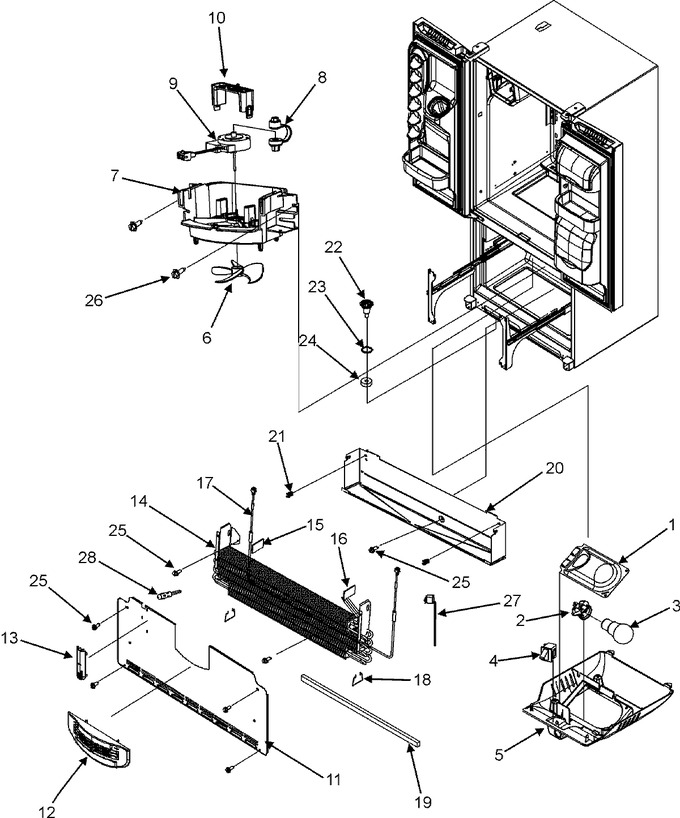

View Diagram in Separate Window
Print Part List
