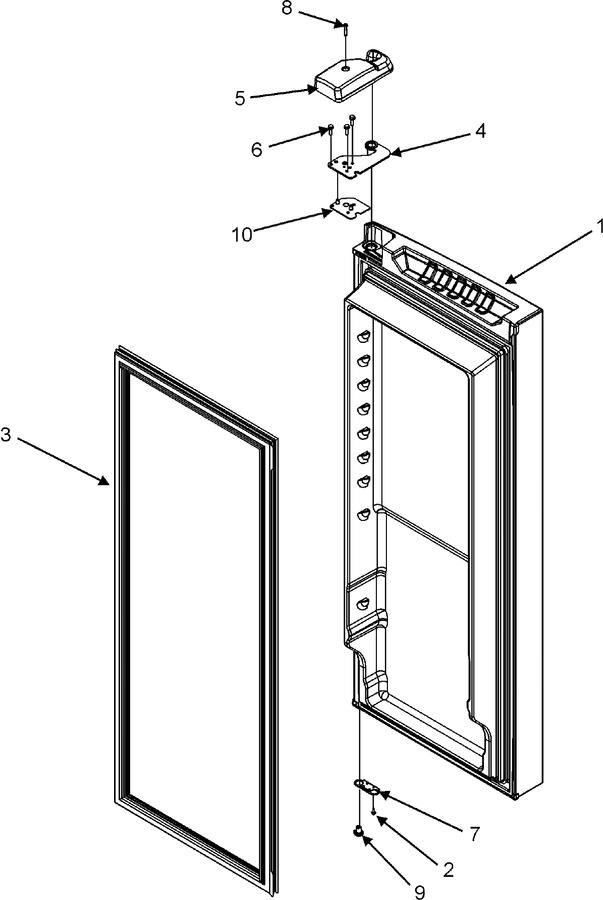

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006143		Door Assy., Rt Ref Foam(stnls)	10	Appelez-nous	-
2	WP98165		Screw, Sm   (Replaces: 67006287)	10			$ 8.57
3	W11378944		Gasket, Ref. Door (blk)   (Replaces: 67006301)	10		Immediately	$ 187.59
4	W11592374		Hinge, Top   (Replaces: 67005955)	10		Immediately	$ 31.90
5	WP67005956		Cover, Top Hinge (rt-blk)   (Replaces: 67005956)	10			$ 22.54
6	WP489349		Screw   (Replaces: 67006303)	10		Immediately	$ 8.43
7	W11708403		Stop, Door (blk)   (Replaces: 67007011)	10		Immediately	$ 14.75
8	WP8281196		Screw   (Replaces: 67006521)	10		Immediately	$ 7.55
9	WP67003639		Closure, Door (blk)   (Replaces: 67003639)	10			$ 90.32
10	12999502		Shim, Top Hinge   (Replaces: 67006309)	10			$ 100.60
