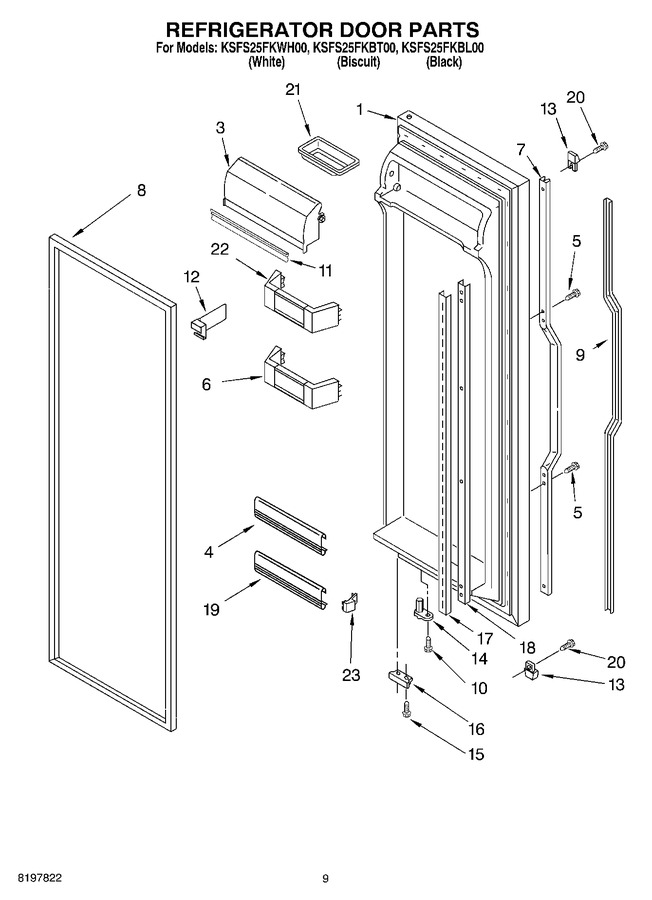

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210773T		Refrigerator Door (includes Item 8) (biscuit)		Appelez-nous	-
1	2210773B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	2210773W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2182190		Trim, Door Shelf		Appelez-nous	-
5	WP489463		Screw   (Replaces: 489463)				$ 7.82
6	2199986		Bin, Door		Appelez-nous	-
7	2203106W		Retainer, Insert (white)		Appelez-nous	-
7	2203106B		Retainer, Insert (black)		Appelez-nous	-
7	2203106T		Retainer, Insert (biscuit)		Appelez-nous	-
8	2209563		Door Gasket, Magnetic (service) (black)		Appelez-nous	-
8	2209561		Door Gasket, Magnetic (service) (mist Beige)		Appelez-nous	-
9	2203107B		Insert, Handle (black)		Appelez-nous	-
9	2203107W		Insert, Handle (white)		Appelez-nous	-
9	2203107T		Insert, Handle (biscuit)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	2159124		Gasket		Appelez-nous	-
12	2195497		Divider, Bin		Appelez-nous	-
13	2194778T		End Cap, Handle (biscuit)		Appelez-nous	-
13	2194778B		End Cap, Handle (black)		Appelez-nous	-
13	2194778W		End Cap, Handle (white)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2214451		Bracket, Door Stop (black)		Appelez-nous	-
16	2210774		Bracket, Door Stop (chrome)		Appelez-nous	-
17	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
18	1113949		Ladder, Shelf (2)		Appelez-nous	-
19	2203087		Trim, Door Shelf				$ 42.91
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
21	2165792		Butter, Dish		Appelez-nous	-
22	2199983		Bin, Door (3)		Appelez-nous	-
23	WP2195916K		Endcap (2)   (Replaces: 2195916)			Immediately	$ 12.55
