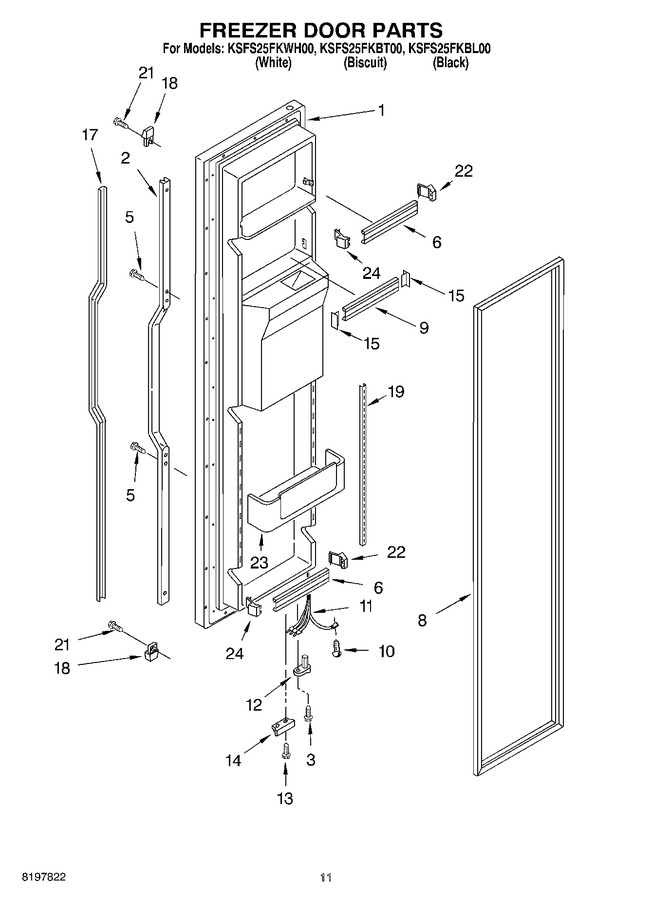

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214469T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2214469B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2214469W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2203106W		Retainer, Handle (white)		Appelez-nous	-
2	2203106B		Retainer, Handle (black)		Appelez-nous	-
2	2203106T		Retainer, Handle (biscuit)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	WP489463		Screw   (Replaces: 489463)				$ 7.82
6	2199990		Trim, Door Shelf		Appelez-nous	-
8	2209562		Door Gasket, Magnetic (black)		Appelez-nous	-
8	2209560		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
9	2199991		Trim, Door Shelf		Appelez-nous	-
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2187667		Wiring Harness, Freezer Door		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2214451		Bracket, Door Stop (black)		Appelez-nous	-
14	2210774		Bracket, Door Stop (chrome)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
17	2203107T		Insert, Handle (biscuit)		Appelez-nous	-
17	2203107W		Insert, Handle (white)		Appelez-nous	-
17	2203107B		Insert, Handle (black)		Appelez-nous	-
18	2194778T		End Cap, Handle (biscuit)		Appelez-nous	-
18	2194778B		End Cap, Handle (black)		Appelez-nous	-
18	2194778W		End Cap, Handle (white)		Appelez-nous	-
19	2208147		Ladder, Shelf Assembly (2)		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
22	WP2195916K		Endcap   (Replaces: 2195916)			Immediately	$ 12.55
23	2199992		Bin, Door (2)		Appelez-nous	-
24	2195917		Endcap		Appelez-nous	-
