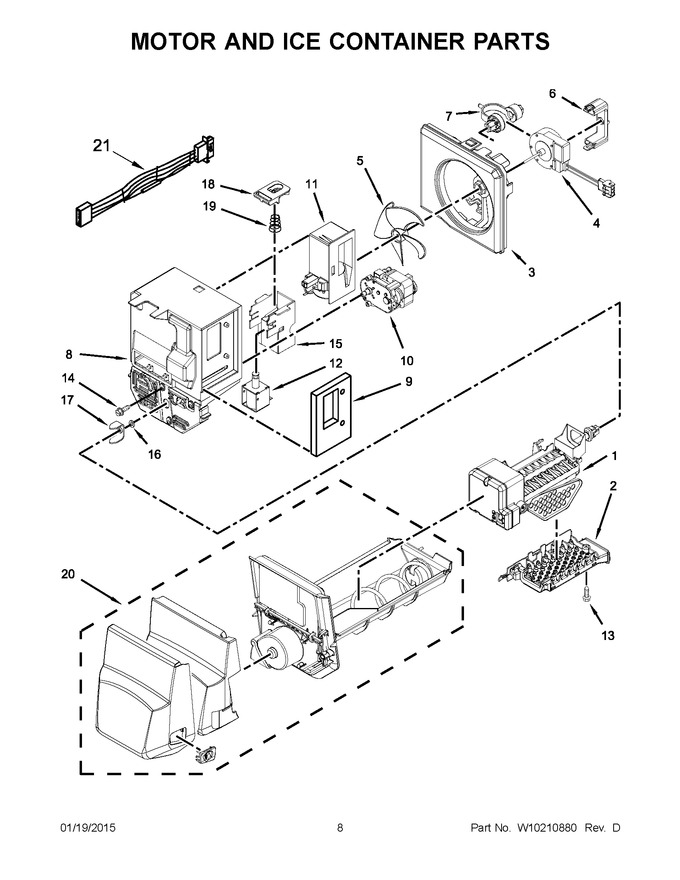

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10882923 | Assembly, Icemaker (Replaces: W10377151) |
|
Immediately | $ 199.01 | ||||
| 2 | WPW10121269 | Assembly, Impinger (Replaces: W10121269) |
|
$ 100.37 | |||||
| 3 | W11700329 | Shroud, Evaporator (Replaces: 67006424) |
|
Immediately | $ 61.20 | ||||
| 4 | WPW10162697 | Motor, Fan (Replaces: W10162697) |
|
$ 355.65 | |||||
| 5 | WP67006337 | Blade, Fan (evaporator) (Replaces: 67006337) |
|
Immediately | $ 90.45 | ||||
| 6 | W10165970 | Clip, Fan Motor |
|
$ 89.17 | |||||
| 7 | W11676465 | Grommet, Fan Motor (Replaces: 67006339) |
|
Immediately | $ 15.56 | ||||
| 8 | 12958408 | Divider, Ice Box |
|
$ 117.61 | |||||
| 9 | WP67006341 | Gasket, Damper (Replaces: 67006341) |
|
$ 8.36 | |||||
| 10 | 67006342 | Motor, Auger |
|
$ 353.47 | |||||
| 11 | WPW10127427 | Damper, Control (Replaces: W10127427) |
|
Immediately | $ 246.61 | ||||
| 12 | 67006344 | Solenoid |
|
$ 200.53 | |||||
| 13 | 67007110 | Screw, Impinger |
|
- | |||||
| 14 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 15 | 67007111 | Bracket, Solenoid |
|
$ 22.22 | |||||
| 16 | 67006346 | Washer |
|
$ 15.97 | |||||
| 17 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) |
|
Immediately | $ 72.36 | ||||
| 18 | 67006347 | Yoke, Solenoid |
|
$ 9.95 | |||||
| 19 | 67006348 | Spring, Solenoid |
|
$ 13.44 | |||||
| 20 | WPW10324089 | Assembly, Ice Bin (Replaces: W10165971) |
|
Immediately | $ 358.27 | ||||
| 21 | W11029429 | Harness, Ice Maker (Replaces: W10404019) |
|
$ 211.70 |
