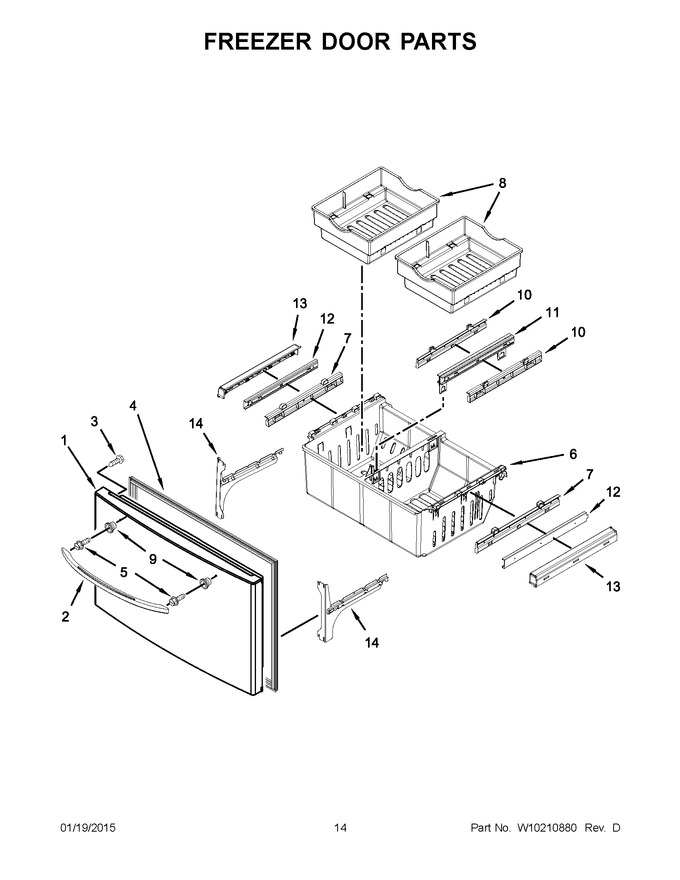

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977868WQ | Freezer Door (white) (Replaces: W10160134) |
|
$ 1,162.59 | |||||
| 2 | WPW10123792 | Handle, Door (white) (Replaces: W10123792) |
|
$ 218.85 | |||||
| 3 | 12991101 | Screw (Replaces: 67006408) |
|
$ 13.47 | |||||
| 4 | W10443323 | Gasket, Door (white) (Replaces: W10164046) |
|
$ 353.83 | |||||
| 5 | WP3387230 | Screw (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 6 | W10166235 | Bin, Lower |
|
$ 184.72 | |||||
| 7 | W10166742 | Adapter, Bin (outer) |
|
$ 98.12 | |||||
| 8 | WP12924903 | Bin, Upper (left Hand) (Replaces: W10166237) |
|
$ 132.30 | |||||
| 9 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 12.56 | ||||
| 10 | 12925404SP | Adapter, Bin (inner) (Replaces: W10163002) |
|
$ 45.32 | |||||
| 11 | WPW10235357 | Bracket/glide Assembly (Replaces: 67006372) |
|
Immediately | $ 330.98 | ||||
| 12 | WPW10235367 | Glide, Upper (Replaces: 67006369) |
|
$ 313.43 | |||||
| 13 | W10826788 | Retainer, Glide (left Hand) (Replaces: 67006367) |
|
$ 57.50 | |||||
| 14 | WPW10330991 | Bracket, Door Slide (left Hand) (Replaces: W10122147) |
|
$ 164.31 | |||||
| 13A | WP67006368 | Retainer, Glide (right Hand) (Replaces: 67006368) |
|
$ 192.90 | |||||
| 14A | WPW10330993 | Bracket, Door Slide (right Hand) (Replaces: W10122148) |
|
$ 166.09 | |||||
| 1A | W10160125 | Freezer Door (black) |
|
- | |||||
| 1B | W10160128 | Freezer Door (bisque) |
|
- | |||||
| 1C | 12977868SQ | Freezer Door (stainless) (Replaces: 12977868S) |
|
$ 1,099.94 | |||||
| 1D | 12977819LQ | Freezer Door (monochromatic Satina) |
|
$ 439.53 | |||||
| 2A | W10123794 | Handle, Door (black) |
|
$ 82.81 | |||||
| 2B | W10123793 | Handle, Door (biscuit/bisque) |
|
- | |||||
| 2C | WPW10123795 | Handle, Door (stainless) (Replaces: W10123795) |
|
$ 278.88 | |||||
| 4A | W10436254 | Gasket, Door (black) (Replaces: W10164047) |
|
$ 272.93 | |||||
| 4B | WPW10443324 | Gasket, Door (stainless) (Replaces: W10180624) |
|
Immediately | $ 338.08 | ||||
| 8A | W10166236 | Bin, Upper (right Hand) |
|
$ 257.27 |
